Round-Filament Hinged Fiber

Round-filament hinged fiber combines a generally circular filament with hinged geometry to create mechanical anchorage after concrete cracking. The circular cross-section gives the filament a more rotationally symmetric bending response than a flat section, while the hinge changes the extraction path and helps the fiber transfer load across an opening crack.

A round filament does not eliminate orientation effects. Fibers still cross cracks at different angles, with different embedment lengths and different hinge positions. What the circular section removes, in the ideal case, is the strong-axis/weak-axis bending contrast that is inherent to a flat rectangular section. For engineering selection, the useful question is therefore not whether a round fiber is “more uniform” or “stronger.” It is whether its geometry, bond, fiber count and dosage can produce the required residual concrete performance with acceptable mixing, pumping, placing and finishing behavior.

Cross-Sectional Mechanics

Round geometry simplifies one variable, not the whole pullout mechanism

A hinged fiber works by forcing the embedded filament to follow a more complex pullout path than a straight fiber.

Once a crack opens, the hinge can rotate, bear against the matrix, partially straighten and create frictional resistance as the fiber is extracted. Energy can be dissipated through interfacial sliding, polymer deformation, local matrix bearing and geometric straightening.

For an ideal circular cross-section, bending stiffness is the same about every centroidal axis in the cross-sectional plane. Rotating the fiber around its own longitudinal axis therefore does not create the same strong-axis/weak-axis distinction seen in a flat filament.

Mechanical Extraction Pathway
crack angle → snubbing and hinge mobilization → pullout path → energy dissipation → residual performance
By comparison, a flat hinged filament adds another coupling: cross-sectional rotation → bending axis → hinge response. Round geometry removes that second coupling in the idealized section, but all the other variables remain. This is why “rotational symmetry” should not be translated into “orientation does not matter.”
Round synthetic macrofiber pullout mechanics and testing

Cross-Sectional Isotropy

Circular geometry eliminates weak/strong axis bending variation around the longitudinal axis.

Engineering analysis of three-dimensional fiber orientation
Crack Plane Mechanics

Orientation still matters because the fiber axis crosses the crack at an angle

In real fiber-reinforced concrete, fibers are distributed in three dimensions. Some intersect a crack almost perpendicular to the crack plane; others intersect it obliquely. Their effective embedment lengths also differ.

As the crack widens, an inclined fiber has to change direction at the crack plane before it can pull through the surrounding matrix. This produces additional contact, friction and local bearing. The effect is commonly discussed as snubbing.

Inclination angle, fiber stiffness, hinge geometry and matrix condition all influence resistance. Higher bearing can improve extraction resistance but can also promote matrix damage or fiber rupture.

Round cross-section therefore offers a narrower symmetry: the filament has no preferred bending axis merely because its cross-section rotates, but it still has a pullout path imposed by the crack and embedded geometry. Nominal diameter and tensile strength alone are not enough for qualification.

Technical equipment for progressive anchorage evaluation
Anchorage Feature

The hinge is the anchorage feature

The circular filament supplies the load-carrying material. The hinge supplies mechanical anchorage.

A straight polymer fiber with limited interfacial bond may pull out with relatively modest resistance. A hinge changes that path: the deformed section can press against the matrix and progressively change shape, increasing pullout work.

The important word is progressively.

A good anchorage system does not simply create the highest possible instantaneous pullout force. If the hinge locks too aggressively, the fiber may rupture before significant pullout displacement develops, or the matrix around the deformation may crush or spall. If the hinge is too weak, it may straighten with limited resistance and provide little post-crack contribution.

Optimal Mechanical Balance

sufficient anchorage → controlled pullout or deformation → sustained crack bridging

That balance must be assessed in the complete concrete, because matrix strength and aggregate structure influence how the hinge is mobilized.

Geometry Comparison

Round-filament hinged fiber and flat-filament hinged fiber solve the same problem differently

Both products are intended to bridge cracks after the matrix has cracked. Their distinction lies in how cross-sectional geometry participates in pullout.

Selection issue Round-filament hinged fiber Flat-filament hinged fiber
Cross-sectional bending More rotationally symmetric Direction-dependent
Rotation around fiber axis Does not create an ideal strong/weak bending axis Can change bending stiffness and pullout response
Crack inclination Still important Important
Hinge geometry Major anchorage variable Major anchorage variable
Snubbing Still relevant Can couple with cross-sectional bending direction
Which performs better? Must be demonstrated in composite testing Must be demonstrated in composite testing

The central difference is therefore not “round is simple, flat is advanced.” It is that a flat section introduces cross-sectional anisotropy, while a circular section is closer to cross-sectional isotropy. That can make the round filament less sensitive to rotation around its own axis, but fiber count, embedment, concrete flow and three-dimensional orientation remain statistical variables. Without directly comparable MICHEM data, neither geometry should be claimed to deliver higher residual strength or lower dosage.

Controlled laboratory testing of fiber tensile and pullout behavior
Governing Limits

Pullout resistance is not the same as fiber tensile strength

Fiber tensile strength tells you the stress required to rupture the filament under a defined tensile test. It does not tell you how much of that strength can be mobilized across a concrete crack.

The crack-bridging force is limited by whichever mechanism governs first:

  • interfacial debonding
  • frictional sliding
  • hinge straightening
  • matrix bearing or spalling
  • fiber yielding or deformation
  • fiber rupture

If pullout resistance is much lower than tensile capacity, additional fiber tensile strength may remain unused. If mechanical anchorage becomes strong enough to approach the fiber’s tensile limit, higher tensile capacity may expand the available performance envelope—but only if the matrix and geometry can mobilize it. Technical purchasing should not rank macrofibers by tensile MPa alone.

Network Probability

Fiber count turns dosage into crack-bridge probability

Concrete producers dose fibers by mass or sometimes by volume, but cracks are bridged by individual filaments.

The number of available fibers depends on the mass of each filament. That, in turn, depends on density, length and cross-sectional area.

For a round filament of diameter (d), cross-sectional area is proportional to (d^2). A relatively small change in diameter can therefore change the mass per fiber and the number of fibers present at the same kg/m³ dosage.

This creates a tradeoff. A thicker fiber may carry more force per filament, while a finer fiber may create more potential bridges for the same polymer mass. Neither is automatically superior because bond, dispersion, hinge geometry and tensile capacity also change.

Procurement Logic

required residual performance → geometry and fiber population → passing dosage → process behavior → installed cost
(Not: highest tensile strength → lowest price per kilogram)

Equal mass dosage is not equal crack-bridging architecture.

Composite Testing

Residual strength is a composite property

A macrofiber becomes valuable after cracking, so the critical qualification result is usually a post-crack property of the fiber-reinforced concrete.

ASTM C1609/C1609M-24 evaluates flexural performance using a third-point-loaded beam. The method distinguishes first-peak behavior from residual strength measured after cracking at specified deflections. That distinction is fundamental: the matrix dominates the first crack, while the fibers increasingly govern what the specimen can carry afterward.

A round-filament hinged fiber should therefore be judged by the residual performance produced by the complete concrete system.

When comparing suppliers, keep the main variables aligned:

  • concrete mixture & aggregate system
  • concrete strength & fiber dosage
  • specimen dimensions & curing
  • test procedure & residual reporting points

Even a valid ASTM C1609 result is a qualification result rather than a universal structural property; fiber amount, fiber type, specimen geometry and loading arrangement influence the measured response.

Statistical Repeatability

Test variability should be treated as information

Fiber-reinforced concrete is inherently statistical because cracks intersect different numbers of fibers with different orientations and embedment lengths. Recent ASTM C1609 variability research also identifies test-related influences such as roller friction and crack location. A single favorable beam result is therefore weak evidence; review both average performance and scatter.

High variability can come from several places:

  • nonuniform fiber distribution & fiber balling
  • inconsistent orientation & rheology
  • inconsistent specimen preparation
  • crack-location effects & test setup

A fiber that occasionally produces a high residual result but frequently falls below the project threshold may be less useful than a system with a lower peak value but tighter repeatability. Consistency is part of performance.

Plant & Jobsite Processing

Mixing Uniformity, Pumping Dynamics & In-Place Orientation

Translating theoretical fiber count into real, distributed reinforcement networks.

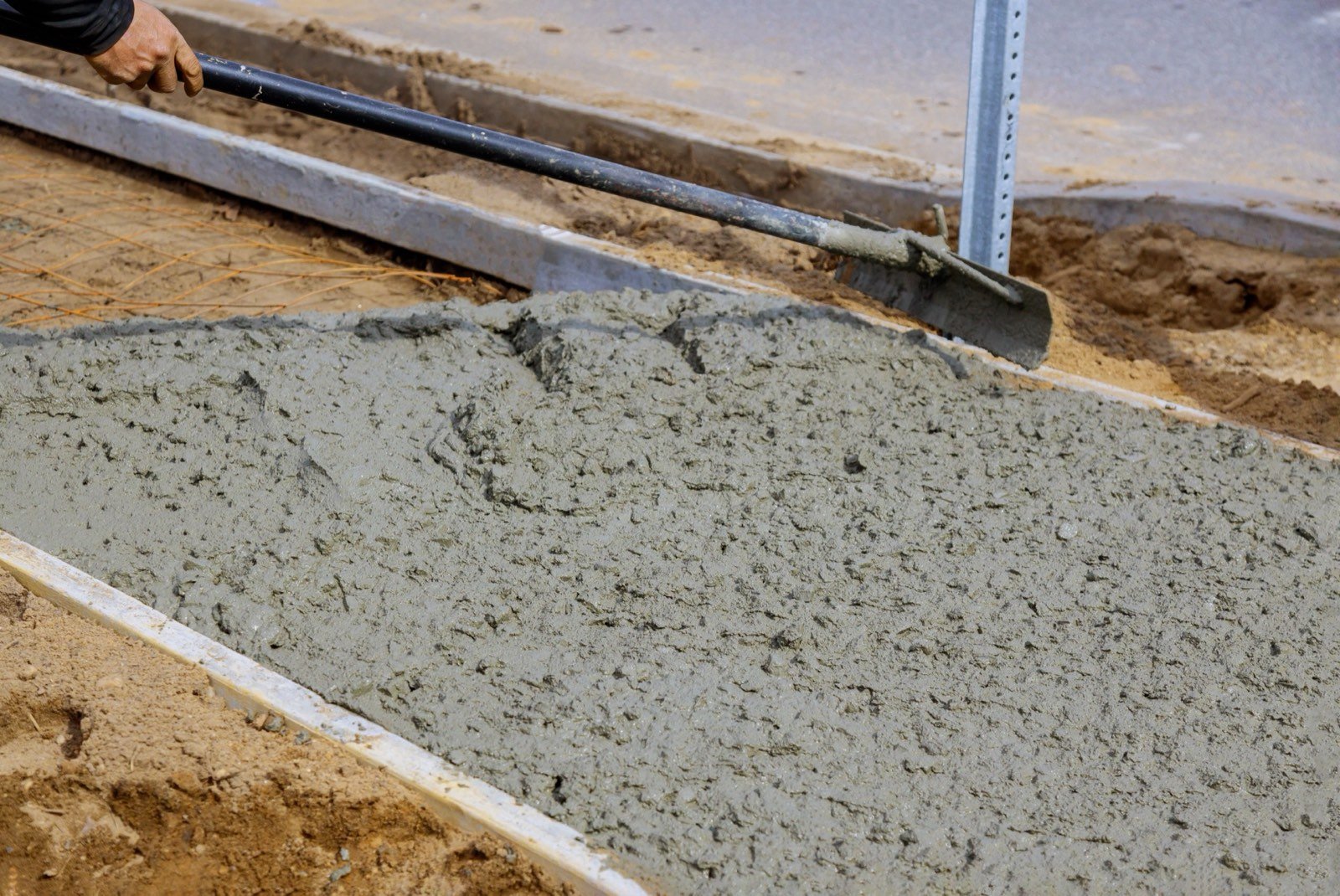

Concrete production environment for fiber mixing and placement
Plant Batching

Mixing determines whether the specified fiber count becomes a real fiber count

A design dosage assumes that fibers separate and distribute uniformly. Deformed macrofibers interact with aggregates, paste and one another during mixing; as dosage rises, poor addition or insufficient mixing can produce clusters.

ASTM C1116/C1116M-23 covers synthetic fiber-reinforced concrete as Type III FRC and requires the delivered material to be uniformly mixed and free of fiber balls. That production requirement matters because a ball of fibers contributes little to the crack plane where reinforcement is needed.

Qualification should therefore record:

  • batching sequence & fiber addition rate
  • mixer type & mixing time after addition
  • slump or workability change
  • visible balling & finishing behavior

A geometry that cannot be dispersed reliably at plant scale is not fully qualified.

Engineering evaluation of concrete pumping and flow behavior
Flow Kinematics

Pumping and placing can change orientation

Fibers do not freeze in random positions immediately after mixing. Flow during discharge, pumping, vibration and placement can reorient them.

In thin members or strongly directional flows, fibers may preferentially align with the material movement or member geometry. This can be beneficial or unfavorable depending on where the critical crack eventually forms.

For round fibers, rotation around the fiber’s own axis is less mechanically significant than for flat fibers, but axis orientation in the concrete remains critical.

Pumpability also needs separate confirmation because fiber geometry, dosage, concrete rheology, line configuration and aggregate grading influence the delivery system. A representative pump trial is more useful than assuming circular fibers will automatically pump more easily.

Sprayed Concrete

Shotcrete qualification should use sprayed material

Shotcrete can be an important application for macro-synthetic fibers because post-crack toughness and energy absorption are useful in tunneling, mining, slope support and repair.

The spraying process, however, creates its own fiber distribution. Nozzle direction, rebound, air velocity, layer thickness and substrate geometry can affect the fibers retained in the hardened shotcrete. Fiber content measured before spraying may not equal fiber content in place, and orientation can differ from conventional cast concrete.

For sprayed application, evaluate the fiber with the shotcrete method specified by the project. ASTM C1116 contains provisions relevant to certain fiber-reinforced concretes for shotcreting, while project acceptance may require panel or other regional methods.

Structural Durability

Long-term cracked behavior must be separated from short-term residual strength

Polymeric macrofibers can deform with time under sustained stress. The fiber–matrix interface can also experience time-dependent pullout.

Research on macro-synthetic fibers shows that long-term pullout depends on configuration, surface form, modulus and sustained load level. A round section does not eliminate polymer creep.

If the fiber contributes to structural load transfer over long periods, the designer should evaluate sustained-load requirements, crack-width limits and the design method required by the project. Short-term ASTM C1609 performance and a fiber tensile test are not by themselves sufficient to establish long-term structural behavior.

For non-structural crack control, the design question may be different. The required level of long-term evidence should follow the actual role assigned to the fiber.

Application Domains

Where round-filament hinged fibers may be evaluated

Curved macro-synthetic fiber product detail

Industrial Floors & Slabs

Emphasis on post-crack residual capacity, distributed crack control, screeding and uncompromised surface finishing.

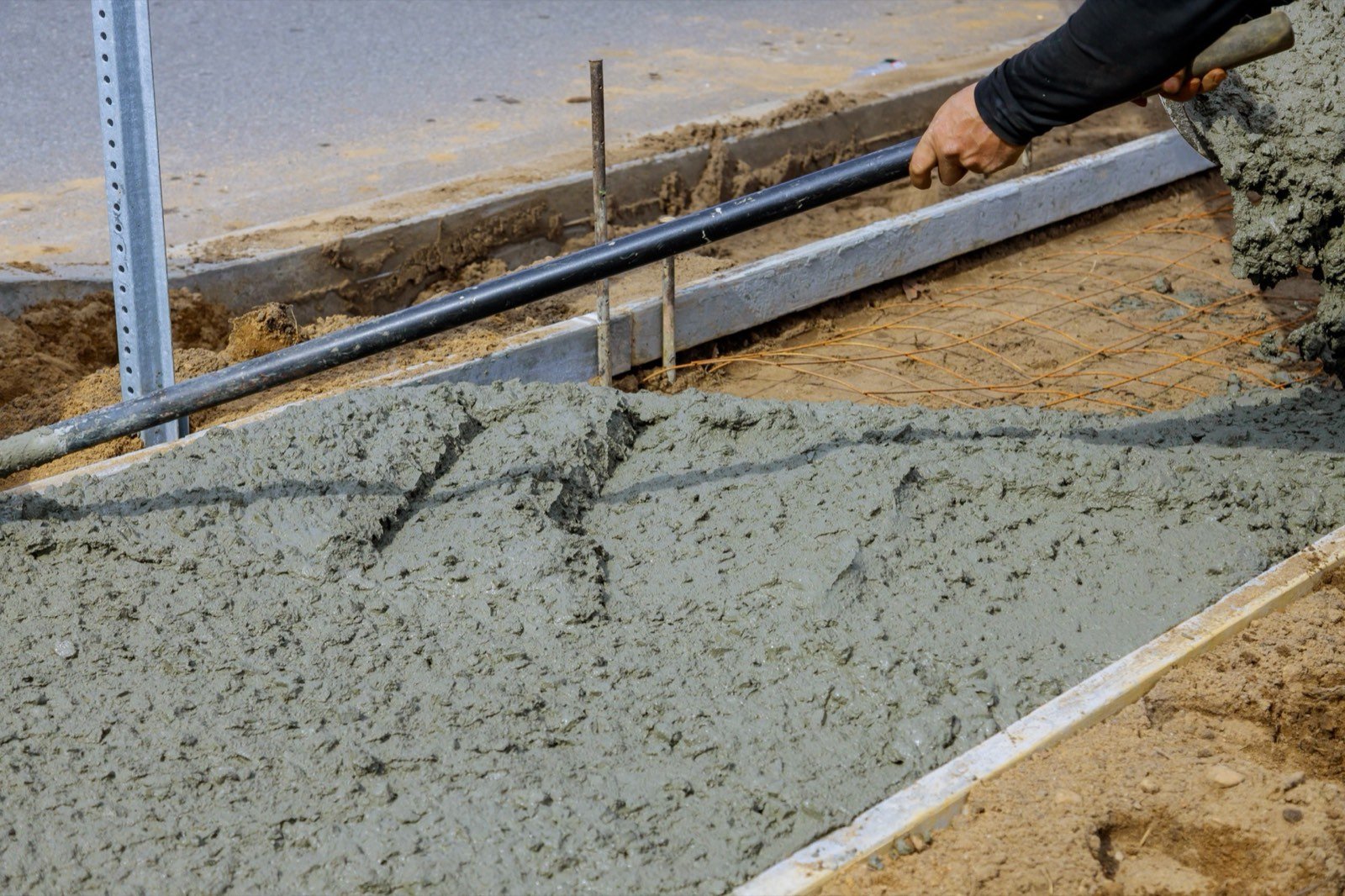

Curved macro-synthetic fiber product arrangement

Pavements & Hardstandings

Integrating post-crack toughness with joint spacing, subbase support, outdoor exposure and curing dynamics.

Precast concrete production and placement

Precast Concrete

Benefiting from tightly controlled batching, high-shear mixing consistency and repeatable post-crack performance.

Sprayed concrete and mining construction environment

Sprayed Concrete / Mining

Providing high energy absorption, reduced rebound and continuous ground support in tunnel linings.

The current MICHEM source set available for this project does not include an approved standalone Round-Filament Hinged Fiber TDS. For that reason, this page does not publish a MICHEM-specific diameter, length, tensile strength, modulus, density, dosage, packaging specification or residual-strength value. Those values must be taken from the current approved MICHEM technical documentation for the actual grade supplied.

Compliance & Testing

Standards create a common comparison language

ASTM C1116 / C1116M-23

The active ASTM specification for fiber-reinforced concrete. Classifies concrete containing synthetic fibers as Type III synthetic fiber-reinforced concrete. It addresses production, workability, air content and uniform mixing requirements.

ASTM C1609 / C1609M-24

The active ASTM beam method for flexural performance of fiber-reinforced concrete. It reports first-peak, peak and residual behavior and can be used to compare candidate fiber systems when the concrete and testing conditions are controlled.

BS EN 14889-2:2006

Remains listed by BSI as current and under review. It addresses polymer fibers for concrete, mortar and grout, including definitions, specifications and conformity.

Mentioning these standards does not establish that a particular MICHEM grade complies with every requirement. Compliance must be supported by the current product documentation and evidence required for the intended market.

Engineering Protocol

How to qualify a round-filament hinged fiber

Start with the performance requirement in the finished concrete. If the project is designed around residual flexural strength, identify the required test method and acceptance level before selecting dosage. If toughness, energy absorption or another post-crack criterion governs, qualify to that criterion instead.

Then run the candidate fiber in representative concrete. The trial should answer two questions: Does the concrete meet the required post-crack performance, and can the producer manufacture and place it reliably?

Keep the binder, aggregate, water, admixtures, mixing sequence, curing and test method controlled while comparing fiber systems. Record workability and dispersion as carefully as residual strength. If the application will be pumped or sprayed, complete a process-scale trial.

Finally, compare economics at the dosage that meets the same target. The cheapest kilogram is irrelevant if more kilograms are required, production slows down or the fiber causes unacceptable finishing problems.

Technical Verification

What to request from the supplier

Before commercial approval, request the current approved MICHEM TDS for the actual Round-Filament Hinged Fiber grade. The technical review should confirm, where applicable:

  • polymer type
  • nominal / equivalent diameter
  • fiber length
  • hinge geometry
  • dimensional tolerance
  • tensile properties
  • elastic modulus
  • density or linear mass
  • recommended dosage guidance
  • packaging and storage
  • relevant conformity documents

For performance-based projects, request composite test data at the stated dosage and confirm concrete strength, specimen configuration and test method. A COA supports batch consistency but does not replace composite testing and production-scale qualification.

Frequently Asked Questions

Technical & Engineering FAQ

An ideal circular cross-section has more rotationally symmetric bending stiffness, so rotation around the fiber’s own axis does not introduce the same strong-axis/weak-axis response as a flat section. This simplifies one part of the pullout mechanics but does not eliminate crack-angle or orientation effects.

No. The fiber axis can still intersect the crack at different angles, and inclination changes the pullout path, snubbing and effective embedment. Round shape mainly reduces sensitivity to cross-sectional rotation.

The hinge creates mechanical anchorage. During crack opening it can rotate, bear against the matrix and straighten progressively, increasing the work required to extract the fiber.

No. Higher tensile capacity is useful only if the matrix, bond and hinge geometry can mobilize it. If the fiber pulls out at a much lower force, additional tensile capacity may not improve composite performance.

They can be trialed at equal dosage, but equal mass is not an equal-performance comparison. Different dimensions and mass per filament create different fiber counts. Final comparison should use the dosage required to meet the same residual target.

ASTM C1609/C1609M is a widely used beam method for flexural residual performance. The project may require another method, particularly for shotcrete or regional design systems.

Not automatically. Pumpability depends on the entire fiber-reinforced concrete system, including length, dosage, hinge geometry, concrete rheology, aggregate grading and pumping equipment.

A product page cannot make that determination. Structural substitution requires an accepted design method, project-specific engineering and verified composite performance.

The source set currently available for this project does not contain an approved standalone MICHEM Round-Filament Hinged Fiber TDS. Use the current approved TDS or COA rather than an assumed industry value.

Compare approved fiber specifications, residual concrete performance at equivalent test conditions, passing dosage, variability, mixing and pumping behavior, documentation and total installed cost.

Performance Summary

Select round-filament hinged fiber by the concrete result

Round-filament hinged fiber combines two ideas: a rotationally symmetric cross-section and a deliberately non-straight anchorage path.

The round section makes bending response less dependent on rotation around the filament axis. The hinge ensures that extraction is still mechanically active. But the finished performance remains governed by the complete system:

fiber population + axial orientation + hinge anchorage + matrix interaction + processing → residual concrete performance

The procurement sequence is: define the cracked-concrete target → test representative concrete → verify production behavior → confirm long-term design needs → compare passing cost.

Request current MICHEM technical documentation before specifying grade-specific properties, and qualify the material in the actual concrete and process.
