Engineered Surface & Wire Construction

Copper-Coated Steel Fiber

Copper-Coated Steel Fiber should be selected by the complete fiber system it creates, not by the assumption that a copper-colored surface automatically guarantees superior corrosion protection.

The coating modifies the surface state; the steel core provides tensile reinforcement; fiber geometry governs crack-bridging populations; and the cementitious matrix controls bond, confinement, and environmental exposure.

The Fiber System Selection Chain

steel core → copper-coated surface → coating continuity → fiber geometry → matrix interaction → crack bridging → durability exposure → residual performance

Steel-Core Reinforcement Coating Continuity UHPC & RPC Compatibility ASTM C1116 Type I

Request Current Technical Data Explore Surface Mechanics

Surface vs. Core Mechanics

Copper coating is a surface system, not the reinforcement core

A copper-coated steel fiber is still fundamentally a steel reinforcement element. The steel core carries tensile stress after a crack localizes; the thin copper layer modifies the boundary condition of that steel.

A copper layer cannot compensate for an unsuitable fiber geometry or insufficient steel tensile strength. Likewise, a high-strength steel core does not prove that the coating is continuous, adherent, or durable under severe exposure. Supplier qualification must separate these structural and metallurgical variables.

Why fine copper-coated fibers are associated with RPC and UHPC

Copper-coated fine steel microwires are frequently encountered in research on Reactive Powder Concrete (RPC) and Ultra-High-Performance Concrete (UHPC). In these dense, high-strength cementitious matrices, high populations of fine fibers bridge microcracks, enhancing flexural toughness, strain capacity, and shrinkage resistance.

However, academic research values are not commercial MICHEM specifications. They establish that copper-coated fine wire is a technically recognized format in high-performance materials, but project-specific dosage, aspect ratio, and residual strengths must be validated for your formulation.

The Central Formulation Question: What does the copper coating actually change in your system, and which benefits must be demonstrated through testing rather than assumed?

Laboratory qualification of copper-coated steel fiber

Manufacturing Roles: Beyond temporary storage rust prevention, copper coating acts as a drawing lubricant carrier during fine wire manufacturing, facilitating precise high-tensile microwire production.

Durability & Electrochemistry

Coating continuity matters more than coating color

A copper-colored fiber may appear uniform while still containing micro-defects, cut ends, or shearing damage that alters electrochemical behavior.

Coating continuity and galvanic exposure

Copper is electrochemically more noble (cathodic) than carbon steel. When coating defects, cut wire ends, or mechanical abrasion expose the underlying steel core in the presence of an electrolyte and oxygen, a localized galvanic couple can form.

Under aggressive conditions, localized corrosion at a defect can proceed rapidly. Therefore, a metallic coating must be evaluated by its defect density, adhesion, and exposure environment—never by color alone.

Engineering Rule: Never translate “copper-coated” automatically into “anti-corrosion steel fiber.” Durability is a system result, not a coating-name result.

Concrete itself is the primary protection system

Steel embedded in sound, dense cementitious matrices is protected by a highly alkaline pore solution (pH 12.5–13.5) that maintains a stable passive oxide film on the steel surface.

A fiber fully embedded in uncracked, dense UHPC exists in a highly benign durability state. However, a fiber crossing an open crack exposed to deicing chlorides or marine spray relies on crack width control and steel metallurgy.

Key Question for Qualification: What chemical and crack exposure is the fiber actually being asked to survive in service?

Comparative Metallurgy

Comparing Copper-Coated to Alternative Fiber Alloys

Evaluating coating chemistry, sacrificial vs. barrier protection, and interfacial bonding mechanisms.

Fiber Technology	Material Architecture	Corrosion Mechanism	Primary Application Context
Copper-Coated Steel Fiber	High-tensile carbon steel core + thin copper surface layer	Noble barrier layer; dependent on coating continuity and alkaline matrix passivity	UHPC, RPC, fine-wire crack control, architectural precast
Uncoated Carbon Steel Fiber	Homogeneous carbon steel wire (cold-drawn / cut sheet)	Relies entirely on alkaline concrete cover; passivates in sound matrix	Industrial slabs-on-grade, heavy flooring, standard structural FRC
Galvanized Steel Fiber	Carbon steel core + zinc metallic coating	Sacrificial anode protection (zinc corrodes preferentially to protect steel)	Moderate outdoor exposure, precast facade elements, moisture zones
Stainless Steel Fiber	Homogeneous austenitic/ferritic alloy (e.g., 304, 316)	Self-healing chromium-oxide passive film; high chloride resistance	Severe marine exposure, chemical containment, refractory linings

Substitution Principle: Do not claim that copper-coated carbon steel is a lower-cost replacement for stainless steel unless project-specific durability test data validates that exact exposure. Geometry (hooked vs. straight) and coating (copper vs. bright) remain independent design variables.

Rheology & Processing

High Fiber Count Advantage vs. Fresh Workability Penalty

Fine microwires dramatically increase crack-bridging population while increasing specific surface area and matrix wetting demands.

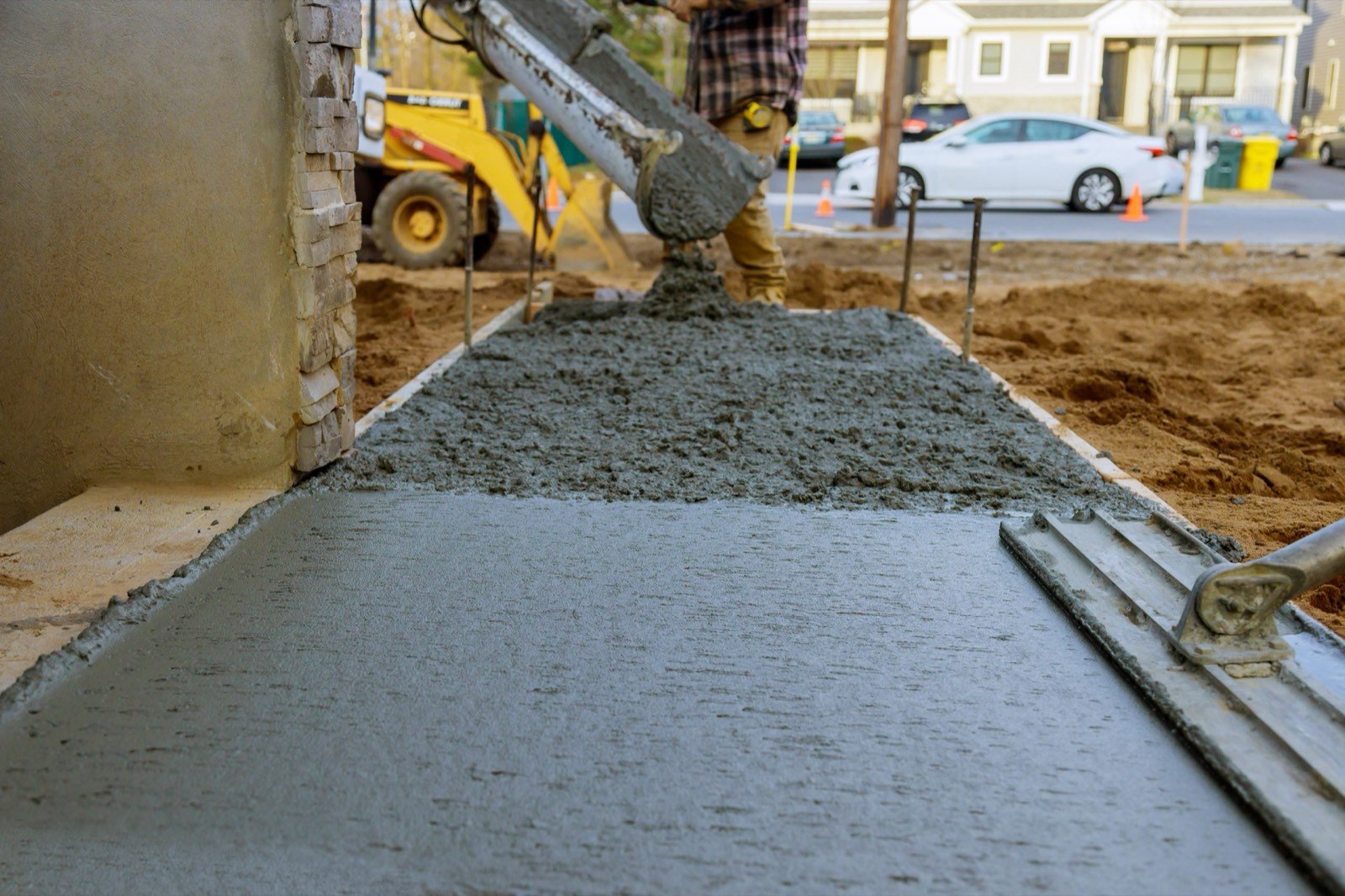

Fresh high-performance concrete placement for steel fiber reinforcement

UHPC & RPC Matrix Systems

Fine steel fibers provide millions of individual bridges per cubic metre, intersecting micro-cracks before they coalesce into macroscopic fractures.

In dense particle-packed matrices, bond is governed by matrix shear strength and confinement. The fine diameter ensures high bond efficiency without coarse aggregate interference.

Mechanics: Fine fibers maximize post-cracking tensile ductility and strain-hardening behavior in high-binder mixes.

Controlling fiber concrete slump and flow without adding water

Flow & Rheology Management

As fine fiber content rises, fluidity drops steeply due to high specific surface area. Never restore workability by adding uncontrolled water.

In UHPC, altering the water-to-binder ratio degrades the dense paste structure. Use polycarboxylate (PCE) superplasticizers and adjust mixing energy to maintain flow.

Dosage Window: Enough fibers for required residual tensile capacity, but low enough to guarantee self-consolidation.

Uniform fiber dispersion and quality control during batching

Dispersion & Coating Integrity

Fine fibers are prone to clumping if dosing is unmetered. Uniform dispersion is a primary QC requirement for ductile tensile performance.

Furthermore, the copper coating must endure high-shear planetary mixing without excessive spalling, preserving surface consistency throughout the fresh mix.

Quality Control: Controlled dispenser feeding + verified mixing sequence = homogeneous composite strength.

Standards & Metrology

Residual concrete performance still has to be measured

A coating specification and a high tensile-strength value cannot substitute for a standardized composite performance test.

ASTM C1609/C1609M evaluates the flexural performance of fiber-reinforced concrete using a third-point loaded beam, distinguishing first-peak strength from residual load capacity at defined deflections.

When qualifying copper-coated steel fiber, adhere to the established hierarchy:

Base Steel Compliance Coating Thickness & Adhesion Composite Flexural Testing Durability Exposure Evidence

Governing Standards Architecture

ASTM C1116 / C1116M Type I Classification

Classifies fiber-reinforced concrete containing steel fibers as Type I FRC. Copper coating does not alter this structural category.

ASTM A820 / A820M Steel Wire Spec

Covers steel fiber manufacturing, diameter tolerances, and tensile/bend minimums. Does not establish copper coating durability claims.

ASTM C1609 / C1609M Composite Testing

Standard test method for flexural performance and residual strength of fiber-reinforced concrete beams.

BS EN 14889-1 European CE Conformity

Definitions, specifications, and conformity verification for steel fibers used in structural concrete, mortar, and grout.

Validation Sequence

A practical supplier-qualification workflow

Verify base steel metallurgy, coating specification, rheological impact, and residual performance before full-scale commercial approval.

Define the Application & Exposure Goal

Determine whether the fiber is intended for UHPC, RPC, precast, or flooring, and define the specific environmental exposure requirements.

Obtain Approved MICHEM Documentation

Verify the actual base steel grade, tensile capacity, fiber dimensions, copper percentage, and coating process on the approved TDS and 3.1 COA.

Rheology & Dispersion Trials

Evaluate fresh mix fluidity, superplasticizer demand, and mixing sequence in your specific cementitious matrix to prevent clumping.

Composite Mechanical & Toughness Testing

Run project-required composite tests (such as ASTM C1609 beam tests) to establish the true residual flexural strength curve.

Exposure & Delivered Cost Assessment

If durability is a key decision driver, verify performance with representative exposure tests and evaluate total delivered cost per passing unit.

Quality assurance specialist inspecting steel fiber batch documentation

The Qualification Chain:
Application → Steel core → Coating specification → Geometry → Dispersion → Mechanical performance → Exposure verification → Delivered system cost.

Diagnostics

Common Copper-Coated Steel Fiber troubleshooting patterns

Supplier claims “corrosion-resistant” with no coating spec

Request the complete TDS and COA. A coating name without thickness, continuity, or process data cannot substantiate a durability claim.

Copper coating damaged or missing at cut wire ends

Determine if exposed ends are standard for the wire cutting method and whether this affects performance in the intended alkaline matrix.

High fiber tensile strength, but low concrete toughness

Check fiber geometry, aspect ratio, orientation, matrix bond, and dispersion. High wire strength does not mobilize toughness on its own.

RPC / UHPC flow drops sharply after adding fibers

Fine fibers have high surface area. Review dosage, mixing energy, superplasticizer dosage, and aggregate grading rather than adding water.

Customer asks if copper-coated fiber replaces stainless steel

Define the exposure first. Stainless steel relies on chromium alloy passivation; copper-coated steel is a coated carbon system with different limits.

Customer asks if copper coating completely prevents rust

Explain that copper acts as a barrier when intact, but coating defects and exposed steel alter the electrochemical environment if cracks form.

Commercial Transparency & Specification Source of Truth

MICHEM’s product architecture identifies Copper-Coated Steel Fiber as a dedicated subcategory under Steel Fiber. Public communication strictly adheres to verified documentation: generic numerical tables are not fabricated on this page. All specific wire dimensions, copper coating thicknesses, tensile grades, packaging formats, and ASTM/EN compliance claims must be obtained from the current approved MICHEM TDS, COA, and project conformity certificates.

FAQ

Frequently Asked Questions

Engineering and commercial guidance for Copper-Coated Steel Fiber selection and testing.

What is Copper-Coated Steel Fiber?

It is a steel reinforcement fiber manufactured with a copper-containing surface coating. The steel core provides the primary tensile reinforcement, while the coating modifies the fiber’s surface condition, wire drawing performance, and temporary corrosion resistance.

Is copper-coated steel fiber corrosion-proof?

No universal corrosion-proof claim should be made. Durability depends on coating continuity, defect density, cut ends, concrete matrix density, crack width control, and environmental chloride/moisture exposure.

Why are copper-coated fine fibers used in UHPC and RPC research?

Fine steel fibers provide very high fiber counts per unit volume, efficiently bridging microcracks in ultra-dense cementitious matrices. Copper coating is standard for fine wet-drawn microwires, ensuring smooth manufacturing and high tensile consistency.

Does copper coating improve fiber–matrix bond?

It can influence surface friction and chemical interaction, but overall bond is predominantly governed by matrix shear strength, particle packing, surface roughness, and fiber geometry. Bond should always be measured experimentally.

Is copper-coated steel fiber the same as galvanized steel fiber?

No. Zinc in galvanized fibers acts as a sacrificial anode (more active than steel), whereas copper is a more noble metallic barrier. They possess fundamentally different electrochemical behavior when the coating is scratched or defective.

Is copper-coated steel fiber equivalent to stainless steel fiber?

No. Stainless steel relies on alloyed chromium to form a continuous, self-healing passive oxide film. Copper-coated carbon steel is a coated composite wire that cannot be treated as a direct substitute in aggressive chemical or marine environments without explicit test evidence.

Which ASTM standard covers steel fibers?

ASTM A820/A820M covers steel fiber material requirements, tolerances, and tensile properties. ASTM C1116 classifies fiber concrete as Type I, and ASTM C1609 governs composite flexural residual toughness testing.

How should post-crack residual performance be verified?

Through standardized composite beam tests (such as ASTM C1609 or EN 14651) cast with the project’s actual cementitious mix, aggregate grading, and fiber dosage.

What dosage should be used in UHPC or RPC?

Dosage typically ranges from 1.0% to 3.0% by volume depending on ductility requirements, but academic percentages should not be blindly copied. Final dosage must be balanced against self-leveling flow and mechanical performance.

What documentation should purchasing request before approval?

Request the official MICHEM grade TDS, 3.1 inspection certificate (COA) detailing wire dimensions, tensile strength, and copper coating specifications, along with representative composite test data.

Engineering Conclusion

Treat copper coating as a specification to verify, not a benefit to assume

Copper-Coated Steel Fiber is best understood as a high-strength steel-core reinforcement element combined with an engineered surface system. Its engineering value cannot be reduced to a generic marketing label like “anti-corrosion fiber.”

The Purchasing Logic: steel core → coating quality → fiber geometry → process compatibility → crack bridging → finished concrete performance → actual durability exposure.

Obtain the approved MICHEM grade-level documentation first. Then qualify the fiber in your actual concrete matrix and evaluate the composite performance required by your project.
