High-Range Water Reducer
PCE Superplasticizer — Polycarboxylate Ether
MICHEM PCE superplasticizer is a polycarboxylate-based water-reducing
technology for cementitious systems where high flow must be achieved without solving workability
by simply adding more water. The right PCE is selected by cement compatibility, initial dispersion,
workability retention and process form—not by a headline water-reduction claim alone.
PCE should be selected by the concrete or mortar problem it has to solve
A cementitious formulation becomes difficult when two requirements pull in opposite directions.
The producer wants enough water for mixing, pumping, placing or leveling, but too much water
increases the water-to-binder ratio and can reduce strength, density and durability. The usual
solution is not to make the mix wetter. It is to disperse the cementitious particles more
efficiently so that the same system can move with less free water.
That is the core role of a polycarboxylate ether superplasticizer.
PCE can provide strong dispersion at low dosage, but “high-range water reducer” is still too
broad to define the correct product. One concrete plant may need maximum initial slump. Another
may need two hours of workability retention. A precast producer may prioritize early strength and
short cycle time. A dry-mix producer may need a solid PCE form that can be dosed directly into
a powder blend. A formulation with clay-contaminated sand may need a PCE with better tolerance
to competitive adsorption.
These are different selection problems.
The correct first question is therefore not:
“Which PCE has the highest water
reduction?”
It is:
“Which PCE gives the
required flow profile with my cement, supplementary materials, aggregates, temperature and
production sequence?”
Application-Driven Flow Design
Balancing water-to-binder reduction with initial slump, transport retention, and early strength.
Polymer Physics
How PCE disperses cement particles
Steric hindrance barriers versus electrostatic flocculation in fresh cement paste.
Dispersion Mechanics
Fresh cement paste contains a very high concentration of fine mineral particles in water. Without
an effective dispersant, those particles tend to flocculate. Water becomes trapped inside the
flocculated structure instead of contributing efficiently to flow.
PCE changes that structure through adsorption and steric repulsion.
The polymer contains an anionic backbone with anchoring groups that adsorb onto cement and early
hydration surfaces. Attached side chains extend into the pore solution. When two polymer-coated
particles approach each other, those side chains create a steric barrier that makes close
re-agglomeration more difficult.
The particles can therefore remain better dispersed. Water that was previously immobilized inside
flocs becomes more available to lubricate the suspension. Flow increases without requiring the same
increase in mixing water.
This explains why PCE is fundamentally different from a simple viscosity modifier. A cellulose
ether changes the rheology of the water phase and fresh matrix; PCE primarily changes particle
dispersion. In a formulation containing both, the two additives can pull rheology in different
directions and must be balanced as one system.
Molecular Engineering
Polymer Architecture & Workability Dynamics
Tailoring backbone charge density, side-chain lengths, and time-dependent flow profiles.
Polymer architecture determines performance
“PCE” does not identify one fixed molecule.
Polycarboxylate superplasticizers can be designed with different backbone charge density,
side-chain length, side-chain density, molecular weight and functional groups. Research
reviews consistently show that these structural variables change adsorption, initial dispersion,
slump retention and interactions with cement hydration.
A polymer with fast adsorption can produce strong initial flow but may not provide the retention
profile required for long transport. A different architecture may adsorb progressively and
preserve workability for longer. Long side chains can strengthen steric repulsion, while
changes in graft density alter the thickness and coverage of the adsorbed polymer layer.
That means two PCE products can both be called
“polycarboxylate superplasticizer” and still behave very differently in the same cement. For
purchasing, polymer chemistry is therefore the start of qualification, not the end.
Initial dispersion and slump retention are different performance targets
A concrete mix can show excellent slump immediately after mixing and still fail before discharge.
Initial dispersion describes how effectively the PCE releases the flocculated structure at the
beginning of the mixing cycle. Slump or flow retention describes how well the system preserves
usable workability as hydration progresses and the pore solution evolves.
The two properties are related but not identical.
If a PCE adsorbs too quickly for the application, the initial result may look excellent while
later slump loss is excessive. If adsorption or polymer release is designed for retention, the
formulation may sacrifice some immediate response in exchange for a more stable time-dependent
flow profile.
This is why a supplier sample should never be
approved from a single five-minute slump value.
For ready-mix concrete, record workability at
the times that represent batching, transport, arrival and placement. For precast or dry-mix
systems, use the time points that correspond to the real production cycle.
Matrix Compatibility
Raw Material Sensitivities
Evaluating cement mineralogy, soluble sulfate competition, and clay contamination in aggregates.
Cement Compatibility
Cement compatibility can matter more than the supplier’s nominal performance
PCE is unusually sensitive to the mineral and ionic environment around cement particles.
Cement fineness, C3A content, sulfate balance and the chemistry of early hydration products
influence how much PCE adsorbs and where it adsorbs. Supplementary cementitious materials add
more surfaces and dissolved species. Temperature changes both hydration rate and polymer
response.
As a result, a PCE that gives excellent flow with one cement can show weak dispersion, rapid slump
loss or excessive retardation with another.
This is not necessarily
evidence that either the cement or the admixture is defective. It may be a compatibility
mismatch. A change of cement plant, clinker source, gypsum source or supplementary material
should therefore trigger at least a focused PCE recheck when workability is commercially
critical.
Sulfate Balance
Sulfate balance can change the response
Sulfate species compete within the early cement-pore-solution environment and can alter PCE
adsorption.
The practical symptom is that a formulation can change significantly even when the nominal
cement type has not changed. Different sulfate forms, soluble alkalis or changes in clinker
mineralogy can shift the adsorption balance enough to affect flow and slump retention.
When a previously stable concrete suddenly
requires more PCE, do not immediately increase dosage.
Compare cement certificates, setting behavior, paste flow and
time-dependent slump. The additional admixture may temporarily restore workability while
hiding a raw-material compatibility change.
Aggregate Cleanliness
Clay contamination is a major PCE failure mode
Clay is one of the most important reasons a PCE can underperform in real aggregates.
Certain clay minerals, particularly swelling clays, can adsorb or intercalate polycarboxylate side
chains strongly. The polymer is then consumed by the clay instead of remaining available to
disperse cement particles.
The field result can look like severe admixture demand: flow drops, slump retention deteriorates
and operators respond by adding more PCE. That approach can become expensive and unstable.
If sand quality is variable,
include methylene-blue or other project-appropriate aggregate cleanliness information in
troubleshooting, and compare the PCE response with representative aggregate lots. Where clay
sensitivity is a known risk, the polymer should be selected and qualified for that environment
rather than only in clean laboratory paste.
Product Architecture
Chemistry First, Physical Form Second
MICHEM’s family structure addresses underlying polymers on the parent level while detailing physical handling across dedicated powder and flake routes.

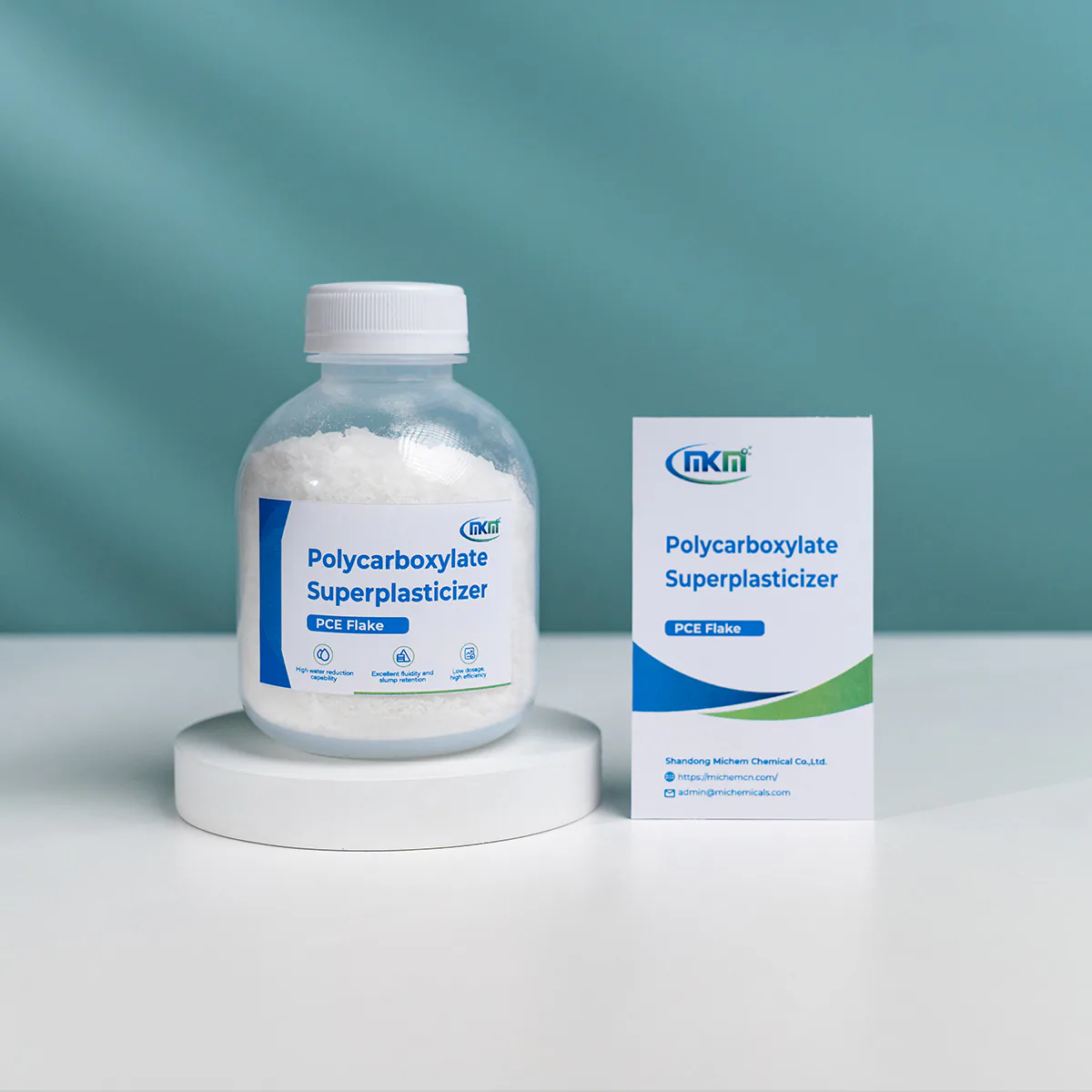

MICHEM’s current website structure separates the PCE family into a parent PCE page and dedicated
PCE Flakes and PCE Powder pages. The parent page should answer
the chemistry and compatibility questions. The form-specific pages should answer handling,
dissolution, dosing and process-integration questions.
Powder and flakes should not be presented as a simple quality ranking. Physical form affects
logistics and manufacturing workflow, but the required concrete performance still comes from the
underlying polymer and its compatibility with the cementitious system.

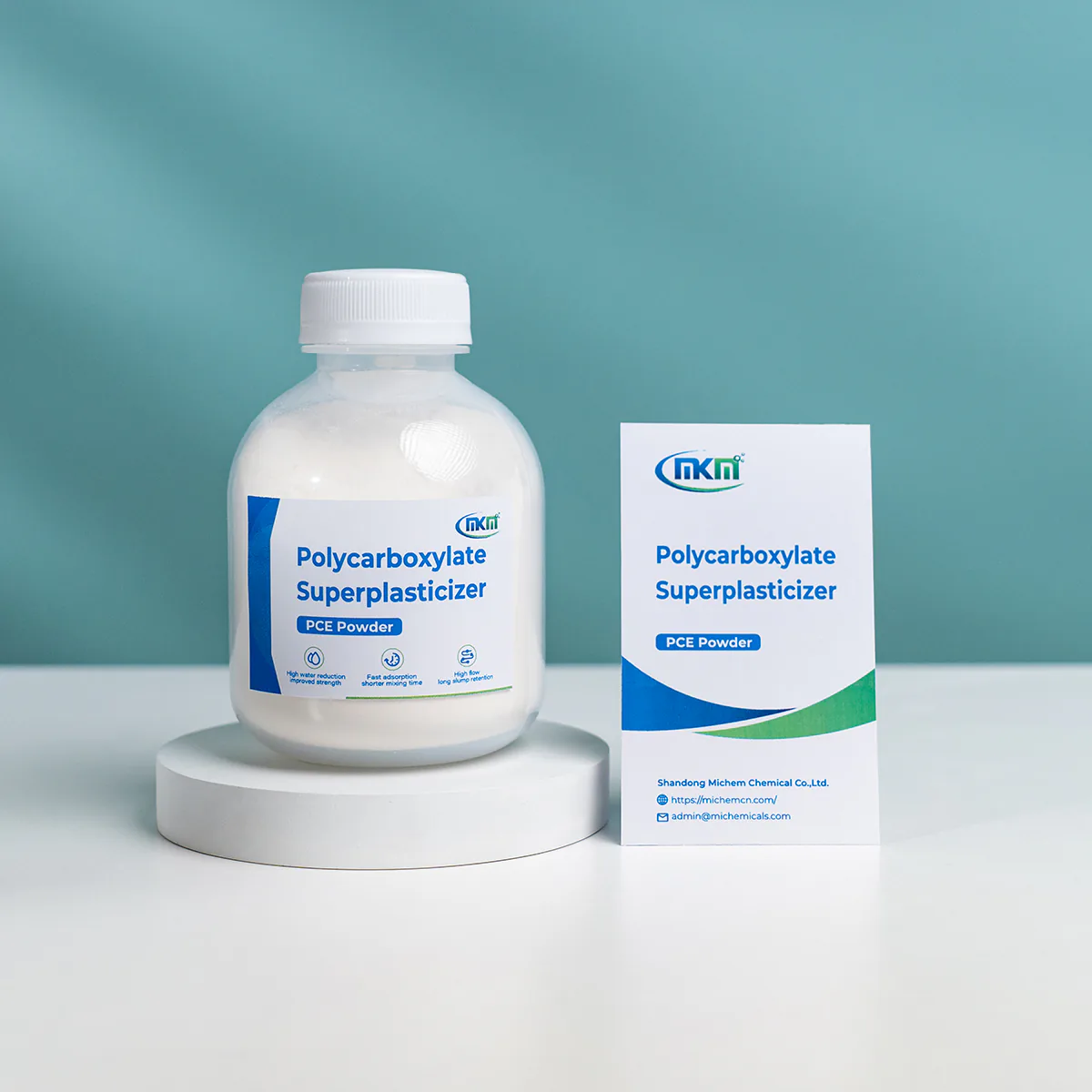

Solid Form: Powder
PCE Powder: Direct Blending for Dry Mixes
A dry-mix producer may value direct powder dosing and blend uniformity. Solid PCE forms are
especially useful in dry products because they allow the water-reducing polymer to be
incorporated without transporting a large liquid-water fraction.
PCE powder is not automatically equivalent to
liquid PCE at the same mass dosage. Dosage comparison must be made on an active-material
basis.
A liquid admixture may contain a defined solids fraction, while a dry PCE product has a
different active-content basis and moisture profile. Comparing kilograms of liquid
admixture directly with kilograms of powder can therefore be misleading. A dry PCE has to
distribute through the powder blend and dissolve rapidly after mixing water is added.
A manufacturer using flakes may have a different dissolution or intermediate-processing route.
Those decisions belong to the specific form pages.
For dry-mix qualification, evaluate both the powder handling and the final cementitious
performance.
The current MICHEM source package available for this website does not provide an approved
PCE grade-level TDS with public water-reduction percentage, dosage range or other numerical
performance specifications. Those values should not be invented here. Final commercial
parameters should come from the current MICHEM PCE TDS or COA for the selected form and
grade.
Do not optimize PCE independently from
cellulose ether
In self-leveling compounds and other dry-mix systems, PCE is often used together with cellulose
ether, RDP, defoamer and set-control additives.
PCE tends to lower the structural resistance of the cement suspension by improving dispersion.
Cellulose ether can increase continuous-phase viscosity and water retention. Starch ether can
increase yield structure. Defoamer changes air, which also affects apparent flow and density.
Changing one additive can therefore make another appear to have changed.
For example, increasing PCE may restore flow after a cellulose-ether change, but it may also
increase segregation or alter setting. Increasing cellulose ether to stop segregation may then
reduce leveling.
The right formulation balances the whole rheology package rather than using PCE as a
universal correction for “not enough flow.”
Holistic Performance
Holistic Performance
High water reduction is valuable only if
the rest of the concrete remains acceptable
The commercial benefit of PCE comes from achieving the required workability at a lower water
demand.
Lower water-to-binder ratio can support higher strength and denser hardened concrete when the
mixture is properly designed and consolidated. But a formulation should not be judged from
water reduction alone.
PCE can also change setting, air, bleeding, segregation and finishing. The effect depends on the
polymer, dosage and materials.
A very fluid concrete with poor stability is not optimized. A precast mix with excellent initial
flow but delayed setting may reduce plant productivity. A self-leveling material with maximum
spread but edge separation can create an unacceptable floor.
The target is usable performance, not the largest flow diameter.
Metrology & Quality Control
Powder and flake qualification should include process behavior
For a solid PCE, document review should cover more than
the polymer name. The approved TDS should define the grade identity and the specification fields
used for incoming QC. Depending on the product, these may include appearance, moisture or
solids-related values, pH after preparation, bulk density or other supplier-controlled parameters.
Application
qualification should then confirm process behavior:
Process QualificationStandards Alignment
Qualification question
Why it matters
Does the solid disperse uniformly in the dry blend?
Prevents local under- or over-dosing
How quickly does it dissolve after water addition?
Controls when dispersion becomes available
Does it create the required initial flow?
Confirms primary water-reduction effect
How does flow change with time?
Identifies retention or rapid-loss behavior
What happens to air and wet density?
Flow alone can hide air-related changes
Does setting remain inside the production window?
Excessive retardation can reduce productivity
Is the response stable across cement lots?
Confirms compatibility robustness
The exact specification limits should come from the selected MICHEM grade TDS, not from generic PCE
market values.
ASTM C494 classifies performance, not polymer marketing names
For projects using ASTM requirements, chemical admixtures are evaluated by concrete performance
rather than by whether the supplier calls the polymer “PCE.”
ASTM C494/C494M-24 is the current ASTM specification listed for chemical admixtures for concrete.
Its categories include water-reducing admixtures and high-range water-reducing admixtures, including
Type F and Type G performance classes.
That distinction is important. A PCE polymer does not automatically become an ASTM Type F or Type G
product because of its chemistry. The finished admixture must meet the applicable performance
requirements under the specified test program.
Similarly, BS EN 934-2:2009+A1:2012 defines requirements for concrete admixtures in the European
standards framework. The intended market, concrete type and project specification determine which
conformity route matters.
Use standards to define acceptance tests. Use polymer chemistry to choose the candidate that is
most likely to pass them.
Validation Framework
A practical PCE compatibility test
Compatibility Testing
Begin with the actual cementitious materials proposed for production.
If the application is concrete, use the real cement, supplementary cementitious materials,
aggregates and air-entraining system where relevant. If the application is a dry-mix product,
use the real binder, fillers, cellulose ether, RDP and set-control additives.
Start with a reference PCE and candidate at controlled active dosage.
Measure initial flow or slump after a fixed mixing sequence. Then repeat the measurement at
application-relevant times. Record temperature because PCE response and hydration rate are
temperature sensitive.
Also record air, wet density and setting. For concrete, include compressive strength at the ages
important to the project. For self-leveling or dry-mix products, include segregation, surface
quality and the relevant hardened performance.
Then build a dosage curve. The useful PCE is the grade that gives a stable performance window,
not the sample that produces the largest first measurement at one dosage.
Finally, repeat the preferred formulation with representative cement and aggregate variation.
Supplier Control
What MICHEM information should be confirmed before ordering
The website product structure confirms MICHEM PCE as a product family with separate flake and
powder routes, but the source set available for this page does not provide an approved public
grade table with numerical PCE specifications.
For that reason, this page intentionally does not publish an unverified water-reduction
percentage, recommended dosage, solids content, pH range, bulk density, chloride value,
packaging or shelf life.
Before ordering, match the intended application to the current MICHEM PCE grade and request the
approved TDS. If the material is being used for a specified concrete standard, confirm which
performance class and test data are required for that market.
Commercial & Quality Alignment
The quotation, TDS, COA and product label should all refer to the same grade and physical
form.
Troubleshooting
Common PCE troubleshooting patterns
Diagnose and resolve rapid slump loss, sudden dosage jumps, mix bleeding, and delayed setting.
Initial slump is high but collapses quickly
The polymer may provide strong initial adsorption but insufficient retention for the required
cycle. Check cement sulfate balance, temperature and the PCE architecture before simply
increasing dosage.
PCE demand suddenly increases
Check cement source, sulfate chemistry, supplementary materials and aggregate clay contamination.
A raw-material change can consume or alter the adsorption of the same PCE.
More PCE gives more flow but also segregation
The dispersion level may now exceed the stability provided by the particle grading and rheology
modifiers. Rebalance the whole mix instead of chasing maximum flow.
Concrete sets too slowly
Review PCE dosage, polymer compatibility, temperature and other retarders. High workability is
not useful if the production cycle becomes unacceptable.
Dry-mix flow varies from batch to batch
Check solid-PCE distribution, dosing accuracy, raw-material moisture and mixing sequence before
treating the issue as polymer inconsistency.
Frequently Asked Questions
PCE Technical & Commercial FAQ
Technical GuidanceApplication Support
What is PCE superplasticizer?
PCE is a polycarboxylate ether/ester-based dispersing admixture used to reduce the water demand
of cementitious materials while maintaining or increasing flow.
How does PCE reduce water demand?
The polymer adsorbs on cement and early hydration surfaces. Its side chains create steric
repulsion that helps keep particles dispersed, releasing water that would otherwise be trapped
inside flocculated structures.
Is PCE the same as a high-range water reducer?
PCE is a chemistry commonly used to formulate high-range water-reducing admixtures, but chemistry
alone does not establish a formal performance classification. The finished admixture must meet
the required standard and project tests.
What is the difference between initial-flow PCE and slump-retention PCE?
Different polymer architectures can produce different adsorption profiles. Some are optimized
for strong initial dispersion; others are designed to preserve workability for longer. The
required balance depends on the production and transport cycle.
Why does the same PCE behave differently with different cement?
Cement mineralogy, C3A, sulfate balance, fineness, alkalis and supplementary materials change the
adsorption environment and early hydration chemistry.
Why is PCE sensitive to clay?
Certain clay minerals can adsorb or intercalate PCE molecules strongly, consuming polymer that
would otherwise disperse cement. This can increase admixture demand and accelerate slump loss.
Is PCE powder stronger than PCE flakes?
Physical form is not a simple strength ranking. Powder and flakes mainly change handling,
dissolution and process integration. Performance must be compared on the basis of the actual
polymer, active content and cement compatibility.
Can PCE be used in self-leveling compounds?
Yes, PCE is commonly used where high flow is required at controlled water demand. It must be
balanced with cellulose ether, defoamer, set-control additives and particle grading so that
increased flow does not create segregation.
Can I compare two PCE suppliers by dosage alone?
No. Compare on an equivalent active basis and under the same cement, water, temperature and
mixing procedure. Measure both initial flow and time-dependent retention.
What should I provide for a MICHEM PCE recommendation?
Provide the application, cement or binder source, supplementary materials, target water-to-binder
ratio, required flow or slump, retention time, temperature, current admixture and dosage,
aggregate quality and any setting or early-strength requirement.
Selection Summary
Select PCE for compatibility, not for the biggest headline number
PCE is powerful because polymer architecture can be engineered to control how cement particles
disperse.
That same sensitivity makes grade selection dependent on the materials around the polymer.
The best PCE is not automatically the product with the lowest nominal dosage, the highest first
slump or the largest advertised water reduction. It is the product that reaches the required
flow at the target water level, retains that flow for the real production cycle, remains stable
with the actual cement and aggregates, and keeps air, setting and hardened performance inside
specification.
Choose the chemistry. Confirm the physical form. Test the
real materials. Then approve the performance window.
Solid Form: Powder
