CMC Carboxymethyl Cellulose | Rheology & Grade Selection

Formulation Engineering

CMC should be selected by formulation chemistry, not by a generic viscosity label

Carboxymethyl cellulose, commonly supplied as sodium carboxymethyl cellulose or NaCMC, is one of the most widely used water-soluble cellulose derivatives. It is used as a rheology modifier, stabilizer, suspending aid and water-management polymer across multiple aqueous industries.

The purchasing problem is that CMC is often reduced to a simple description such as “high viscosity,” “medium viscosity” or “CMC 1000.” Those labels are not enough to define how the material will perform.

CMC is an anionic polymer. Its carboxymethyl groups carry charge in aqueous environments, so the polymer chain responds to salts and multivalent ions differently from nonionic cellulose ethers such as HPMC, HEMC and HEC. Molecular weight influences chain entanglement and solution viscosity. Degree of substitution affects charge density, water solubility and polymer interactions. Concentration determines whether chains are relatively isolated, overlapping or strongly entangled.

As a result, two CMC products with similar viscosity under one laboratory method can behave differently when introduced into a mineral slurry, coating, detergent or cementitious formulation.

Start with the chemistry of the finished system. Then compare CMC grades using an aligned viscosity method and application testing.

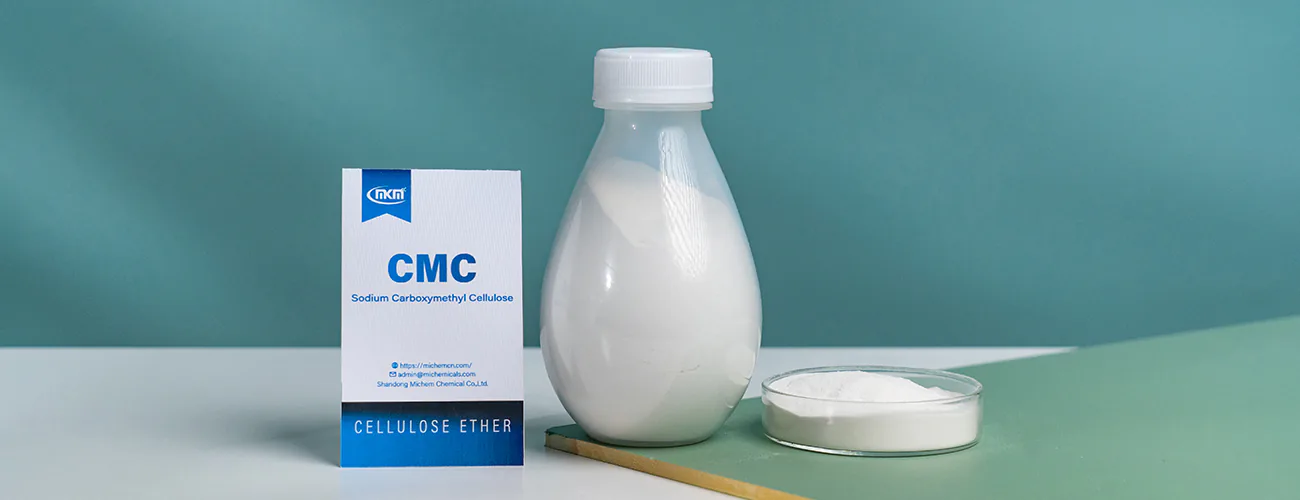

CMC sodium carboxymethyl cellulose product view 2

Polyelectrolyte Rheology

Chain conformation, ionic screening, and viscoelastic response under electrolyte conditions.

Chemistry Differentiation

What makes CMC different from HPMC, HEMC and HEC

Understanding polyelectrolyte behavior, chain expansion, and electrostatic screening in aqueous formulations.

All four materials are cellulose derivatives, but they should not be treated as interchangeable “cellulose thickeners.”

HPMC, HEMC and HEC are nonionic cellulose ethers. CMC contains carboxymethyl groups and is normally used in its sodium salt form, giving it an anionic polyelectrolyte character in water.

That distinction changes formulation behavior.

In a low-ionic-strength water phase, electrostatic repulsion along the CMC chain can help the polymer adopt an expanded conformation. When ionic strength rises, dissolved ions screen some of those electrostatic interactions. The chain conformation and apparent viscosity can change. Calcium and other multivalent ions can produce additional interactions that may not occur to the same extent with nonionic cellulose ethers.

For procurement, replacing HEC with CMC or CMC with HPMC because the materials have similar standard viscosity is not a technically complete substitution. Compare them inside the actual formulation.

Core Variables

Three Pillars of CMC Performance

How substitution density, chain length, and dissolved electrolyte concentrations govern performance.

Parameter 01

Degree of substitution is a functional parameter

Degree of substitution, usually abbreviated DS, describes the average number of hydroxyl groups on each anhydroglucose unit that have been replaced by carboxymethyl groups.

For CMC, DS influences solubility, charge density and rheological behavior.

A change in DS can alter how strongly polymer chains interact with water and with each other. Research on sodium CMC shows that lower substitution can increase hydrophobic association and, under some conditions, increase aggregation or gel-like behavior. Higher substitution generally increases the density of carboxymethyl groups and changes the balance between electrostatic and hydrophobic interactions.

The highest DS is not automatically the best grade. When comparing suppliers, treat DS as a meaningful identity and performance variable because similar viscosity with a different substitution profile can still produce different processing and storage behavior.

MICHEM’s current source package for this website does not provide an approved CMC DS specification, so no MICHEM-specific value should be published until the current grade TDS is confirmed.

Parameter 02

Molecular weight helps define the viscosity range

CMC solution viscosity is strongly affected by polymer molecular weight.

Longer polymer chains occupy more hydrodynamic volume and can create stronger overlap and entanglement as concentration increases. That is why commercial CMC families are often available across broad viscosity ranges.

But “higher molecular weight” is not a universal performance advantage.

A very high-viscosity CMC may create excellent low-shear body but poor pumpability or difficult dissolution. A lower-viscosity product may be more suitable where the formulation needs suspension support without excessive application resistance. If solids loading is already high, a small increase in polymer structure can produce a disproportionately large change in process viscosity.

The correct grade depends on the process window. In coatings or slurries, check storage, pumping and application; in detergent systems, check dispensing and salt compatibility; in mineral or cementitious systems, evaluate mixing, segregation, setting and admixture interaction.

Parameter 03

Ionic strength can change CMC viscosity

One of the most important differences between CMC and nonionic cellulose ethers is sensitivity to the ionic environment.

Studies of CMC solutions show that ionic strength can strongly influence polymer conformation and intrinsic viscosity. In practical terms, a CMC solution prepared in deionized laboratory water may not behave the same way when the formulation contains salts, mineral ions, surfactants, cement pore solution or hard process water.

A standard solution-viscosity test is useful for incoming QC, but application approval should be carried out in the real water and chemical environment rather than in a simple aqueous solution alone.

If a plant changes water source, electrolyte level or mineral raw material, a previously qualified CMC can appear to “change” even though the polymer itself remains within specification.

Before escalating a raw-material complaint, check whether ionic conditions in the formulation have changed.

Operational Processing

Concentration Thresholds & Hydration Control

Managing non-linear viscosity build-up and preventing agglomeration during plant-scale mixing.

CMC solutions can shift from relatively low-structure behavior at low concentration to strongly shear-thinning and viscoelastic behavior as concentration rises.

This has two commercial consequences.

First, dosage-response may be highly nonlinear. Adding 20% more CMC does not necessarily produce only 20% more viscosity. Near the chain-overlap and entanglement regions, comparatively small dosage changes can produce much larger changes in flow behavior.

Second, a single viscosity measurement at one shear condition does not describe the whole product life cycle.

A material may need high low-shear resistance to slow sedimentation during storage but lower apparent viscosity under pumping or application shear. That balance is often more valuable than the highest possible viscosity.

When qualifying a CMC grade, build a dosage curve rather than making one large correction after each trial.

CMC is water soluble, but “water soluble” does not mean it will dissolve instantly under every production condition.

When dry powder contacts water, the outside of the particle begins to hydrate. If local hydration is too rapid, a viscous outer layer can form around dry material and create lumps or fish-eyes. These agglomerates can delay full viscosity development and produce batch-to-batch inconsistency.

Grade qualification should therefore include wetting and dissolution. Mixing energy, addition rate, water temperature, existing solids and sequence of addition can all change hydration behavior, so an ideal clean-water laboratory test may not reproduce the plant process.

For scale-up, record how long the batch takes to reach stable viscosity rather than testing only immediately after mixing.

Application Domains

Where CMC can add value

Engineered rheological, binding, and suspension performance across industrial sectors.

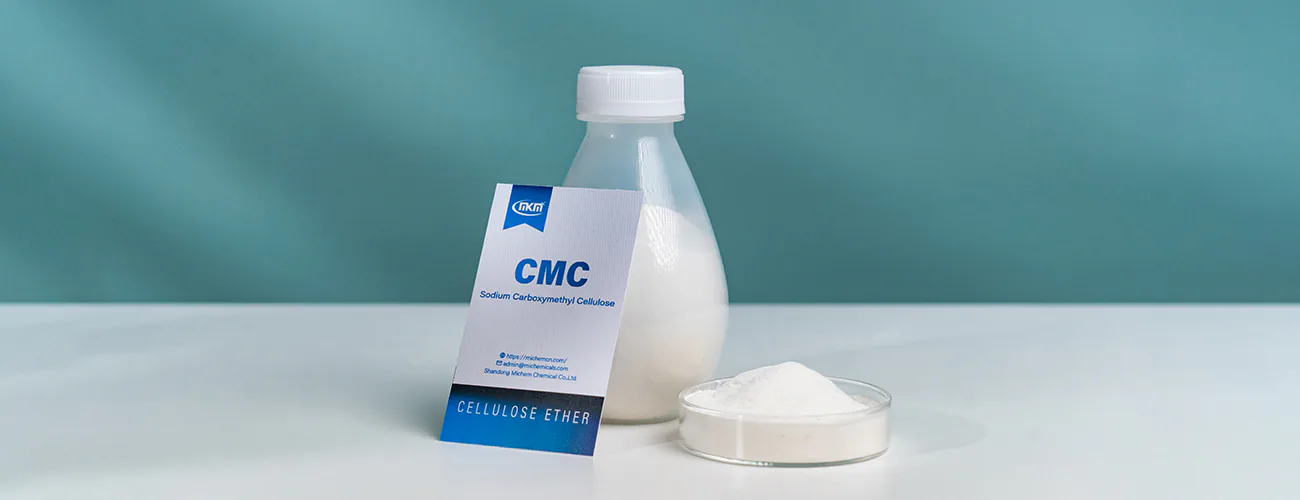

CMC sodium carboxymethyl cellulose product view 3

Coatings & Dispersions

Water-based coatings and mineral dispersions

In an aqueous coating or mineral slurry, CMC can increase continuous-phase viscosity and help reduce settling or separation.

The correct rheology is application-specific. A product that is extremely stable in the container may still fail because it is difficult to pump, brush, spread or level. Conversely, a low-viscosity system may process easily but allow pigment or filler sedimentation during storage.

CMC should therefore be evaluated across the relevant shear range and after realistic storage.

Dispersants and salts are especially important because they can change both particle interactions and CMC chain behavior.

Get a Quote Request Coating Grade Info

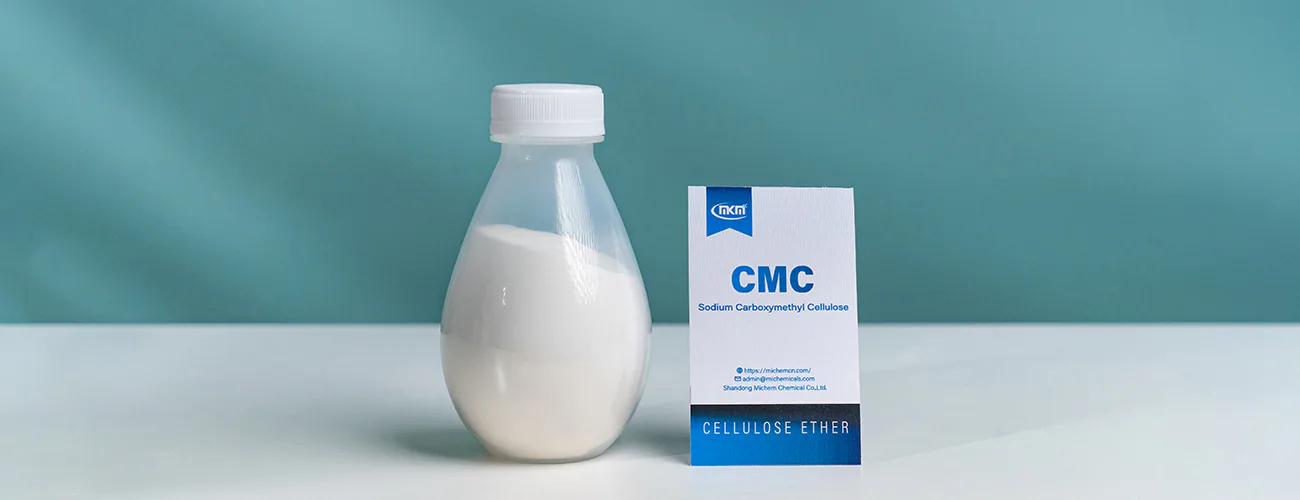

CMC sodium carboxymethyl cellulose product view 4

Detergent Systems

Detergent and cleaning formulations

CMC has a long history of use in detergent and cleaning systems as a water-soluble functional polymer.

In these systems, viscosity may be only one requirement. The formulator may also need compatibility with surfactants, builders, salts and the desired dispensing behavior.

A grade qualified in pure water should not be assumed to maintain the same viscosity in a concentrated surfactant-electrolyte formulation.

Get a Quote Request Detergent Grade Info

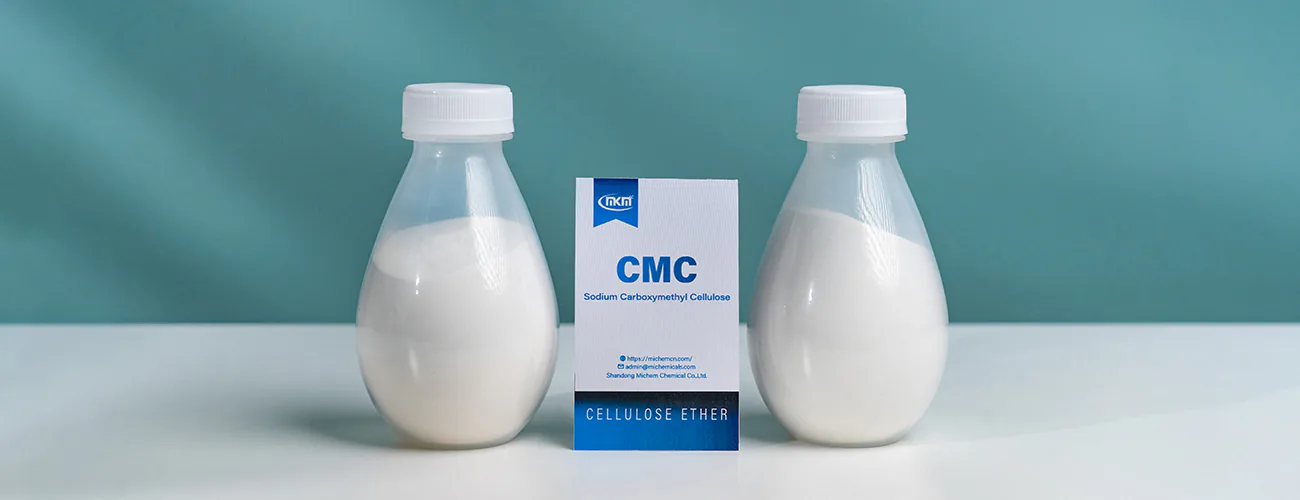

CMC sodium carboxymethyl cellulose product view 5

Ceramics & Minerals

Mineral and ceramic slurries

CMC can be evaluated where mineral particles need suspension, binding or controlled aqueous rheology.

Here the interaction between polymer, mineral surface, dissolved ions and dispersant package can become more important than the nominal solution viscosity. Clay minerals and calcium-containing materials can change the apparent effect of an anionic polymer.

Run the comparison in the actual mineral blend.

Get a Quote Request Slurry Guidance

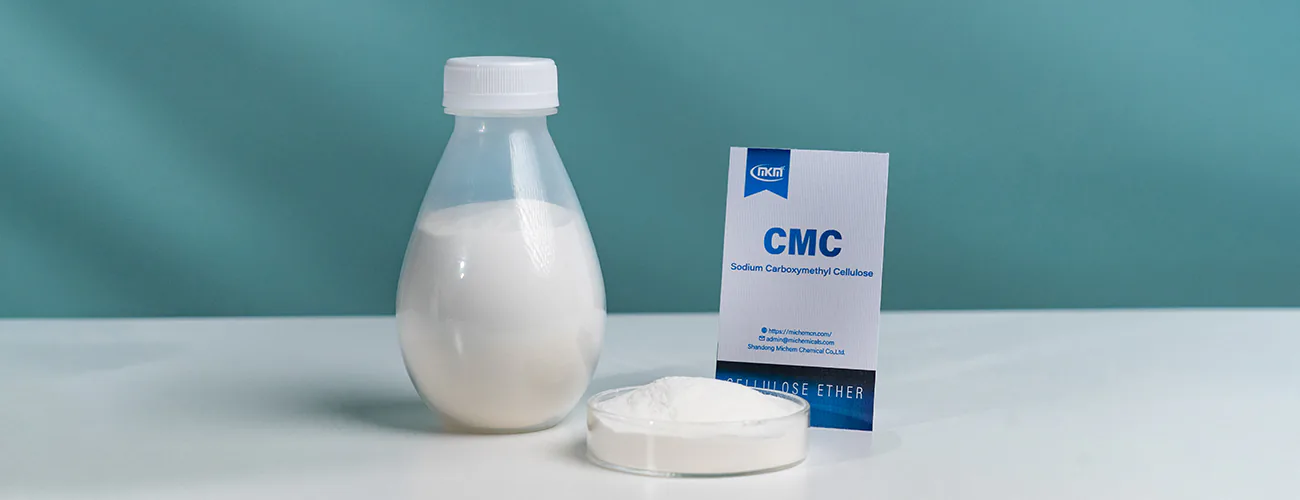

CMC sodium carboxymethyl cellulose product view 6

Cementitious Systems

Selected cementitious systems

CMC has been studied as a rheological and water-management additive in cement-based materials. Research has shown that it can change paste viscosity, hydration-related behavior and other hardened properties under specific experimental conditions.

Those results are not universal claims for every CMC grade. Cement pore solution contains high ionic concentrations and calcium species, so CMC can interact with cement particles and hydration products in a way that depends on chemistry and dosage.

For a cementitious application, qualification should therefore include setting and cured performance rather than fresh consistency alone.

Get a Quote Request Cement Testing Protocol

Cross-Platform Comparison

CMC Across Rheology Modifier Families

Evaluating ionic mechanism boundaries against HPMC, HEMC, HEC, and starch ethers.

CMC is not a default replacement for HPMC or HEMC in dry-mix mortar

HPMC and HEMC are established primary cellulose ethers for dry-mix construction applications because their performance profile is closely aligned with water retention, open time and mortar rheology.

CMC can influence water and rheology too, but its ionic character introduces a different interaction mechanism.

If a dry-mix producer wants to replace HPMC or HEMC with CMC, a one-to-one dosage substitution is not a sound assumption. Test water demand, consistency, water retention, air, open time, slip or sag, setting, adhesion and relevant strength.

Where CMC is the established chemistry in an existing product, stay within the performance window that has already been validated unless the commercial benefit of reformulation justifies a full qualification program.

CMC versus HEC

HEC is nonionic; CMC is anionic.

This is the most important first distinction.

If a formulation contains significant electrolyte, multivalent ions or strongly charged ingredients, the two polymers can respond differently even when both give similar viscosity in standard water.

HEC may be preferred when a nonionic rheology modifier is desirable. CMC may be useful where its specific polyelectrolyte behavior, binding or stabilization function fits the formulation.

Neither chemistry is universally “more salt tolerant” or “better for suspension” without defining the exact grade and system.

The correct comparison is application-specific.

CMC versus starch ether

CMC and hydroxypropyl starch ether should also not be treated as substitutes simply because both can increase consistency.

In construction dry mixes, hydroxypropyl starch ether is normally used as a secondary rheology modifier to refine anti-sag, workability and thixotropic behavior alongside a primary cellulose ether.

CMC can play broader thickening and stabilization roles in aqueous systems, but its ionic chemistry changes the selection logic.

If the formulation problem is specifically vertical sag in a mortar that already has adequate cellulose-ether water retention, starch ether may be the more precise tool. If the problem is aqueous viscosity or suspension in a different formulation environment, CMC may be more relevant.

Choose the chemistry by the failure mechanism rather than the raw-material category.

Metrology & Quality Control

Compare supplier CMC specifications correctly

A meaningful CMC comparison should begin with aligned test methods.

Specification field	Why it matters
Viscosity method	Concentration, temperature, instrument, spindle and speed all affect the result
Degree of substitution	Influences charge density, solubility and polymer interactions
Molecular-weight/viscosity grade	Influences chain overlap and rheology
Moisture	Changes effective active-solids dosage
Purity or salt content	Can matter to sensitive formulations
pH of test solution	Helps define the supplier’s QC method
Particle form	Can affect wetting, dispersion and dissolution rate

Do not compare only the first viscosity number visible on two TDS sheets.

The solution concentration is particularly important. A 1% test and a 2% test can produce dramatically different results. Instrument and speed also matter because CMC is shear sensitive.

After document screening, prepare both samples under one controlled method and then compare them in the finished formulation.

Validation Protocol

Build a qualification protocol around the actual process

Begin by defining why the current CMC is being changed.

Is the goal lower cost, faster dissolution, better suspension, higher viscosity, improved pumping, reduced settling or supply security? If the target is vague, the trial is difficult to interpret.

Keep the first comparison controlled. Use the same water, solids, salts, surfactants, dispersants and process sequence. Add the candidate at the same starting active dosage.

Record wetting and dissolution time. Wait until viscosity development is stable before making conclusions.

After the like-for-like test, build a small dosage series around the candidate. Find the lowest dosage that achieves the full target without creating secondary problems.

Finally, repeat the preferred condition using normal production water and raw-material variation.

Key Application-Specific Measurements

Then measure the application-specific properties. These may include:

low- and high-shear viscosity

yield behavior

settling & storage stability

sag & leveling

pumping

water retention & bleed

setting or cured strength

What MICHEM specifications should be confirmed before publication or ordering

CMC is included in the MICHEM cellulose ether product structure, but the supplied source package for this website does not include a dedicated CMC TDS with approved grade-level specifications.

For that reason, this page intentionally does not publish an unverified MICHEM grade code, viscosity range, degree of substitution, purity, moisture, packaging, shelf life or dosage.

Before a commercial order or final website specification table is issued, confirm the current MICHEM CMC grade and approved TDS. The quotation, TDS, COA, packaging label and purchase order should use the same product identity and viscosity method.

That approach is more technically credible than filling missing fields with generic market values.

Troubleshooting

Common CMC troubleshooting patterns

Diagnose and resolve common viscosity shifts, lump formation, and electrolyte interactions.

The solution viscosity is lower than expected

Check test concentration, hydration time, water ionic strength, temperature and measurement method before assuming the material is out of specification. Salt differences alone can shift CMC solution behavior.

The batch develops lumps

The powder may be hydrating too quickly at the surface. Review addition rate, agitation, order of addition and whether CMC is entering an already viscous or highly concentrated phase.

Storage stability improves but application becomes difficult

The dosage or molecular-weight range may be creating excessive low- and medium-shear structure. Rebalance the grade or dosage instead of adding water blindly.

Performance changes after switching mineral or water source

The CMC may be responding to a changed ionic environment. Check hardness, calcium, dissolved salts, mineral surface chemistry and dispersant demand.

Cementitious material sets differently after a CMC change

Treat the change as an admixture-compatibility issue, not only a rheology issue. CMC can interact with cementitious systems, so setting and hydration-sensitive performance should be requalified.

Frequently Asked Questions

CMC Technical & Commercial FAQ

What is CMC?

CMC is carboxymethyl cellulose, commonly supplied as sodium carboxymethyl cellulose. It is a water-soluble anionic cellulose derivative used for rheology modification, suspension, stabilization and other formulation functions.

Is CMC the same as sodium CMC?

Commercial CMC is commonly used in sodium salt form and may be described as NaCMC or sodium carboxymethyl cellulose. The exact supplied chemistry should still be confirmed on the product TDS.

Is CMC ionic or nonionic?

CMC is anionic in its commonly used sodium salt form. HEC, HPMC and HEMC are nonionic cellulose ethers, which is one reason they can behave differently in the same formulation.

What controls CMC viscosity?

Important variables include molecular weight, concentration, degree of substitution, ionic strength, temperature and the test method. Finished-formulation ingredients can change the observed result further.

Does salt affect CMC viscosity?

Yes. CMC is a polyelectrolyte, and research shows that ionic strength can strongly influence its chain conformation and solution viscosity. Test it in the real formulation environment.

Can CMC replace HPMC?

Not automatically. Their ionic character and formulation behavior differ. Any replacement in dry-mix mortar should be validated through full application testing.

Can CMC replace HEC?

Not as a simple viscosity-for-viscosity substitution. HEC is nonionic and CMC is anionic, so salt and particle interactions can differ.

Can CMC be used in cement-based materials?

CMC has been investigated in cementitious systems as a rheology and water-management polymer. Because it can interact with cement hydration and ionic species, application-specific testing is essential.

How should two CMC grades be compared?

Align the viscosity method first, including concentration, temperature, instrument and speed. Then compare dissolution, salt response and finished-formulation performance at controlled dosage.

Which MICHEM CMC grade should I order?

The source documents currently available for this website do not provide an approved MICHEM CMC grade table. The correct route is to provide the application, target viscosity method, current grade and key formulation requirements so the current MICHEM grade can be matched against its official TDS.
