Water-Based Coating Additives & Rheology Engineering
Formulate water-based coatings around the entire rheological and interfacial sequence—from in-can suspension and shear thinning to sag/leveling recovery, air release, open time, and continuous film formation.
Coatings Operate Across Multiple Shear Regions
Paint is subjected to vastly different shear regimes throughout its life cycle. In the can, near-zero shear governs pigment suspension. During pumping, brush loading, and high-speed rolling, shear rates surge above $$10^4text{ s}^{-1}$$.
Immediately after transfer, shear collapses back to near-zero as the wet film must balance surface-tension leveling against gravity-driven sagging. Formulating for a single viscosity number fails because performance depends on time-dependent structural recovery.

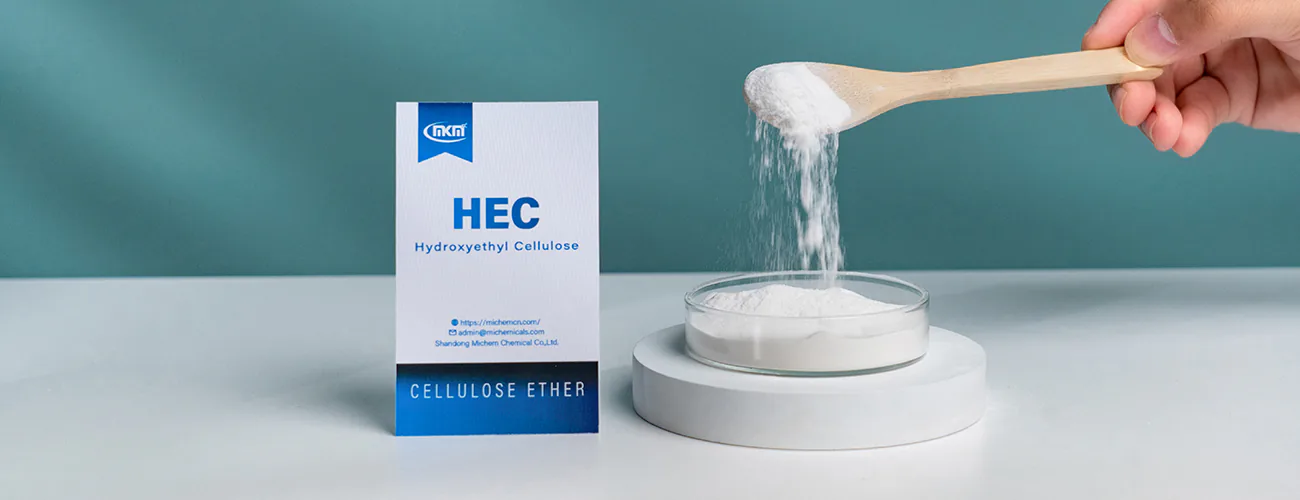

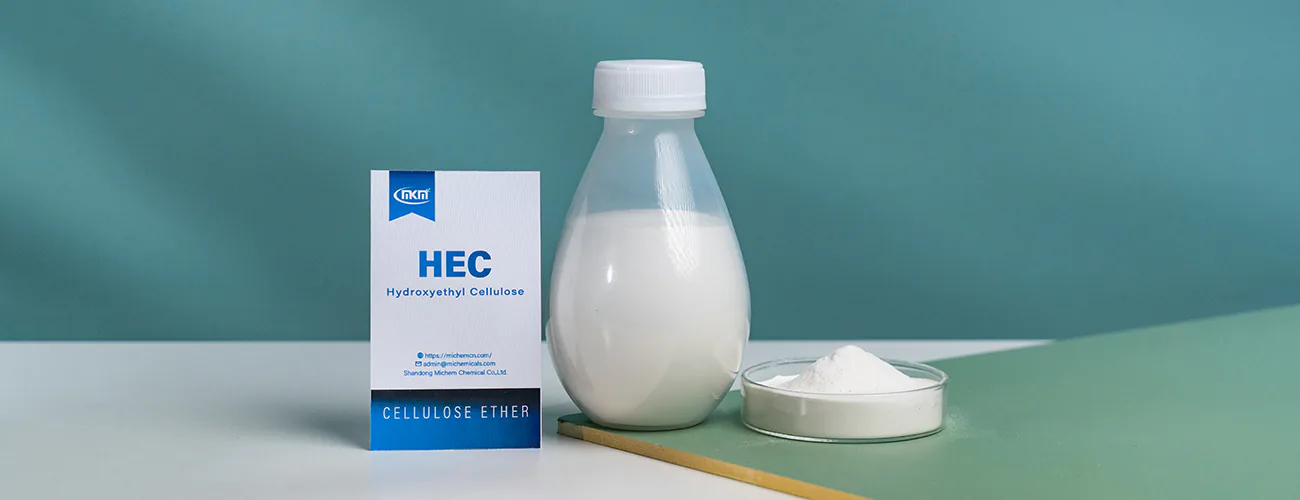

HEC: Nonionic Rheology & Suspension Control
Hydroxyethyl Cellulose (HEC) is a premier nonionic, water-soluble polymer providing aqueous phase thickening, spatter resistance, and stable pigment suspension across diverse latex systems.
Because HEC is nonionic, its chain conformation remains highly stable in the presence of formulation electrolytes, dispersants, and multi-valent mineral extenders. Candidate grades must be screened in the complete coating system to verify pseudoplastic shear recovery.

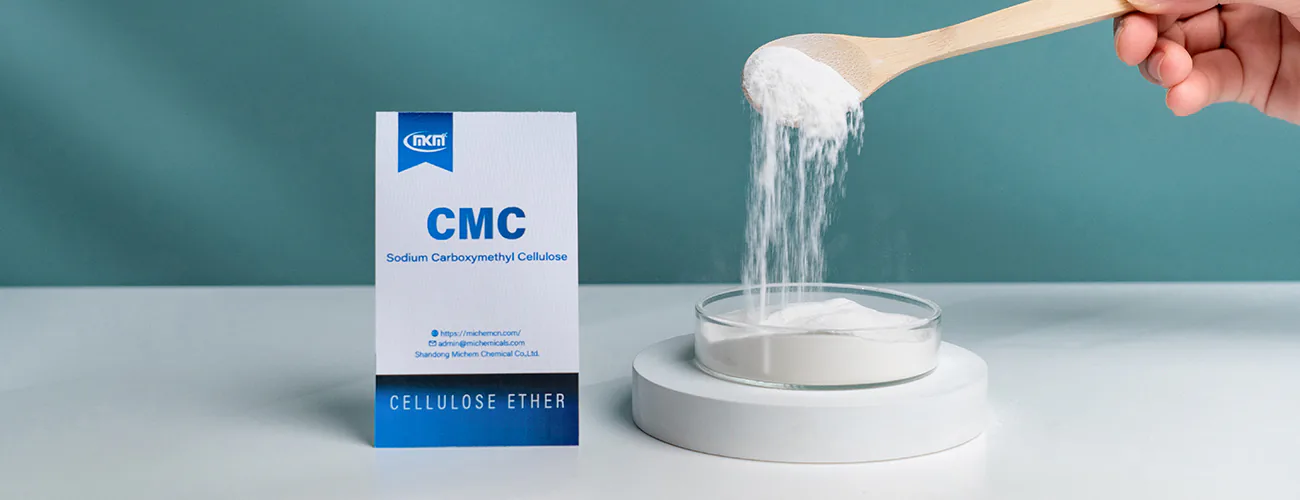

CMC: Anionic Rheology & Electrolyte Sensitivity
Carboxymethyl Cellulose (CMC) operates as an anionic polyelectrolyte, building water-phase viscosity through electrostatic chain extension and hydrogen bonding.
Unlike nonionic HEC, CMC responds strongly to dissolved salts, calcium carbonate extenders, and hard process water. High-solids paints with multivalent cations can alter CMC polymer coil dimensions, necessitating direct testing in the final pigment letdown.
In-Can Pigment Suspension & Consistency Metrics
Dense mineral pigments and extenders settle over shelf life if low-shear yield stress ($$tau_0$$) is insufficient. ASTM D869-21 evaluates the settling degree and ease of cake redispersibility after thermal aging.
ASTM D562-10(2023) measures medium-shear consistency in Krebs Units (KU) using a Stormer viscometer. While KU controls batch-to-batch manufacturing uniformity, comprehensive rheology requires low-shear and high-shear characterization per ASTM D2196.
Sag vs Leveling: Managing Competing Dynamics
Immediately after coating deposition, the wet film faces opposing rheological requirements: it must flow sufficiently to level brush ridges and roller stipple, yet rebuild structure rapidly to prevent curtaining on vertical walls.
ASTM D4400-18(2025) multi-notch applicator testing evaluates anti-sag index. If thixotropic recovery is too instantaneous, brush marks freeze into the film; if recovery is delayed, the wet layer sags under gravitational stress.
Pigment Dispersion vs Rheological Suspension
Dispersion is the mechanical breakdown of pigment agglomerates into primary particles stabilized by wetting agents, measured via Hegman gauge per ASTM D1210-05(2022).
Suspension is the polymer network preventing settled hard cake over storage. Incomplete grind dispersion cannot be masked by adding excess thickener; poor dispersion leads to seediness, reduced opacity, and unstable color development.

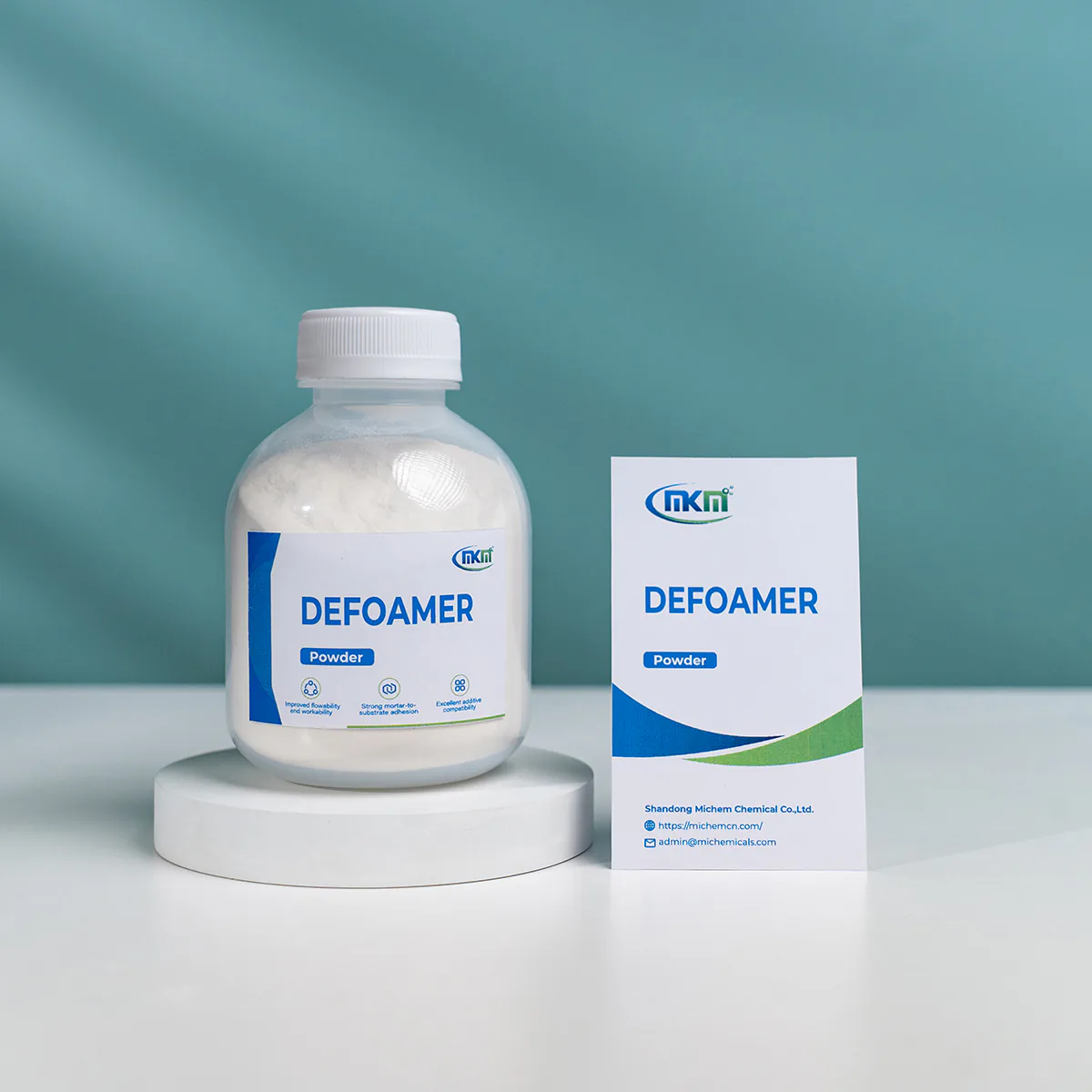

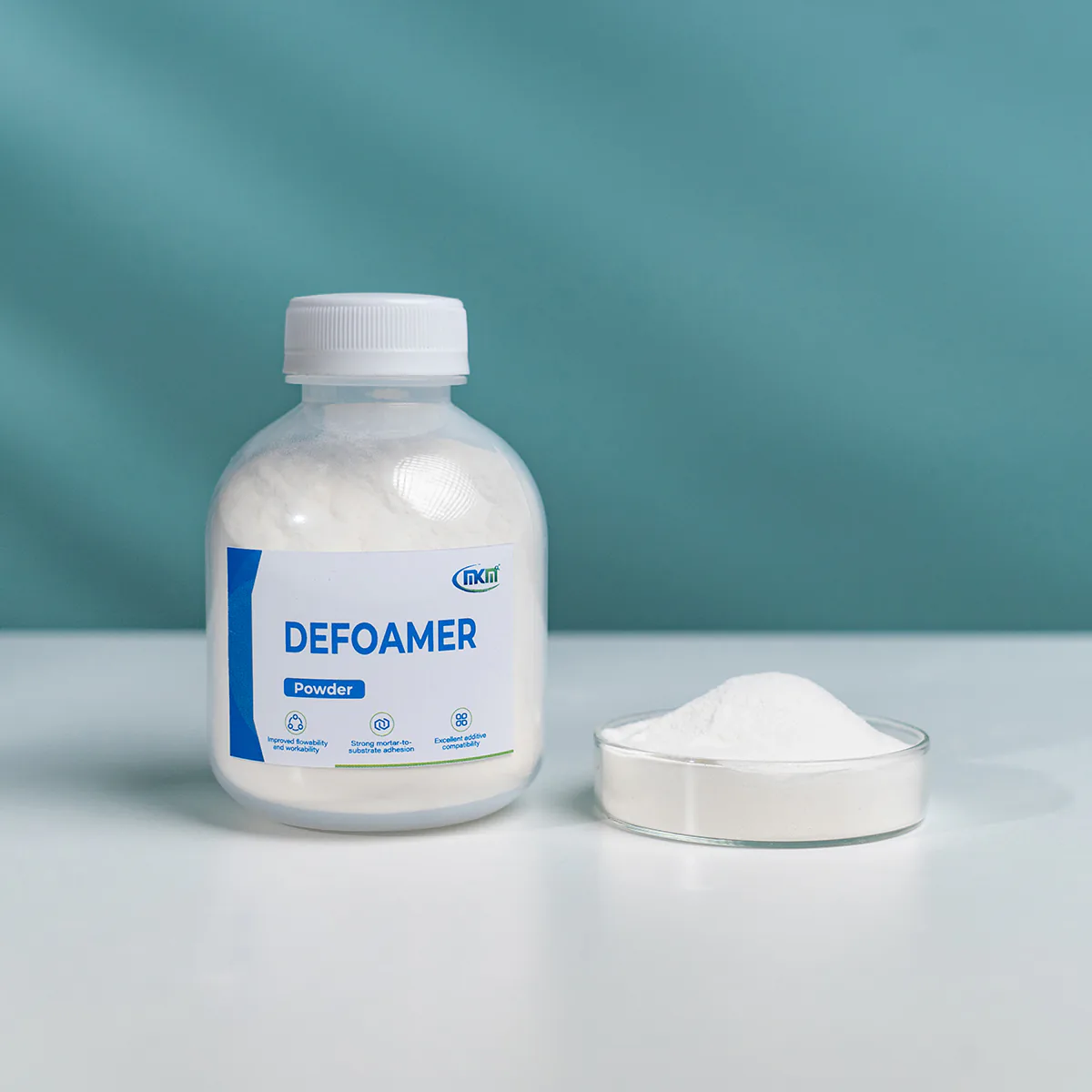

Air Release, Microfoam & Liquid Defoamers
High-shear pigment milling and surfactant-stabilized latexes generate entrained microbubbles and macro-foam. Entrained air impairs batch filling volume and produces craters, pinholes, and loss of film continuity.
A liquid defoamer must balance controlled incompatibility to destabilize lamellae without causing fish-eyes or surface dewetting. Any candidate defoamer must be validated directly in the target binder and pigment package.
Open Time (ASTM D7488)
Evaluates the usable window during which wet paint edges can be blended seamlessly without leaving lap marks, governed by water evaporation, cosolvents, and cellulosic water retention.
Latex Coalescence
As water evaporates, polymer particles deform and interdiffuse to form a continuous barrier. Rheology modifiers must not impede binder coalescence or create moisture sensitivity.
Roller Spatter Resistance
High-speed rolling generates extensional filament stretch. Cellulosic polymers optimize extensional viscosity, preventing paint mist and droplet throw during rapid rolling.
MICHEM Screening Map for Water-Based Coatings
Screening directions matched to coating rheology and processing challenges.
| Coating Performance Vector | Primary MICHEM Direction | Mechanism & Formulation Target |
|---|---|---|
| Nonionic Thickening & In-Can Suspension | MICHEM HEC Family | Nonionic pseudoplastic thickening; high electrolyte stability and spatter resistance |
| Anionic Water-Phase Viscosity | MICHEM CMC Family | Polyelectrolyte chain extension; cost-effective water thickening and flow control |
| Macro-Foam & Micro-Air Elimination | Liquid Defoamer Systems | Interfacial bubble destabilization; pinhole-free film closure and accurate batch filling |
| Inorganic Coloration & Opacity | Iron Oxide Pigments | High tinting strength, weather resistance, and lightfast mineral color development |
Coating Rheology & Processing Troubleshooting Guide
Systematic corrective pathways for wet-state, application, and dry-film defects.
Target KU Met but Pigment Settles
Stormer KU reflects medium-shear behavior. Increase low-shear yield stress ($$tau_0$$) with HEC to prevent hard caking without adding medium-shear drag.
Anti-Sag Improves but Leveling Fails
Thixotropic recovery is too rapid, locking brush ridges into the film. Rebalance thickener molecular weight to allow sufficient open leveling flow before structure rebuilds.
Roller Spatter During Fast Rolling
Excessive extensional elasticity throws droplets from the roller cage. Adjust cellulose ether substitution and review high-shear shear-thinning response.
Tank Foam Collapses but Film Shows Craters
Defoamer is overly incompatible or inadequately dispersed. Reduce defoamer dosage, improve grind dispersion shear, and verify substrate wetting tension.
Frequently Asked Questions
Essential technical clarifications on coating rheology modifiers and additives.
Why can a paint meet target viscosity and still sag?
Single-point viscosity (like KU) reflects medium shear. Sag resistance is governed by low-shear yield stress and the time-dependent rate of viscosity rebuild immediately after application.
Can CMC directly replace HEC in water-based coatings?
Not automatically. HEC is nonionic and electrolyte-tolerant, whereas CMC is an anionic polyelectrolyte sensitive to calcium ions, pigments, and water hardness.
Which ASTM standard evaluates paint consistency?
ASTM D562 measures paint consistency in Krebs Units (KU) using a Stormer-type viscometer, serving as a primary batch QC standard.
How is paint sag resistance quantified in the laboratory?
ASTM D4400 utilizes a multi-notch applicator bar to determine the critical wet film thickness before downward gravity sag occurs on vertical charts.
Should more defoamer be added if pinholes appear?
Only after confirming entrained air. Pinholes can stem from substrate suction or wetting failure; excess defoamer causes severe surface craters and dewetting.
Does MICHEM supply in-can preservatives?
Preservatives and biocides are treated as separate regulatory formulation components and are not published within this additive portfolio.
Formulate the Coating Through Its Entire Flow History
Water-based coatings cannot be optimized by a single viscosity metric. Build your formulation across every transition: in-can storage, high-shear roller application, timed leveling recovery, and defect-free coalescence.
Collaborate with MICHEM technical specialists to calibrate HEC, CMC, defoamers, and pigments for stable, high-performance architectural and industrial coatings.
