Self-Leveling Compound Additives for Controlled Flow & Surface Healing
Self-leveling compounds work inside one of the narrowest rheology windows in dry-mix construction. They must flow far enough to flatten under gravity, but not so freely that cement, fillers or aggregate separate. They must release entrapped air, yet retain enough internal cohesion to avoid bleeding. The surface has to heal after spreading, close before the material sets, and then develop the strength and adhesion required for the floor system.
The Complete Formulation Sequence:
water demand → particle dispersion → controlled viscosity → flow and leveling → segregation resistance → air release → surface closure → setting → early strength and dimensional stability
MICHEM’s current portfolio provides several distinct levers inside this chain. MH04K is the low-viscosity HPMC direction specifically positioned for self-leveling compounds. RDP 5011L is positioned as the self-leveling specialty polymer powder. PCE Powder provides a dry-mix route to high-range cement dispersion and water reduction. DP500 Powder Defoamer is positioned for self-leveling and other dry-mix cementitious systems where excess air must be reduced. None of these products should be used as a universal “flow additive.” They solve different parts of the system.
Gravity Flow • Segregation Resistance
Self-Leveling is Not the Same as Maximum Spread
A self-leveling mortar needs enough mobility to move under its own weight. But maximum flow diameter is not the goal. If the formulation is over-dispersed, the material may show:
- Edge separation
- Bleed water
- Sedimentation
- Density gradients
- Floating fines
- Aggregate settlement
- Delayed surface instability
The True Engineering Objective:
high flow + stable particle suspension + sufficient flow retention + complete surface healing
Surface Closure • Homogeneous Matrix
Rheology Equilibrium • Multi-Additive Synergies
Flow and Stability Pull the Formulation in Opposite Directions
PCE lowers the structural resistance of the cementitious suspension by dispersing particles. Cellulose ether increases the rheological contribution of the continuous aqueous phase. RDP can change cohesion, air and fresh flow while modifying hardened performance. Defoamer changes the bubble population, which also changes wet density and apparent flow.
The Four-Way Balance:
dispersion → viscosity → polymer cohesion → air
Increasing PCE may restore flow but increase segregation; increasing cellulose ether can restore stability while reducing leveling; defoamer changes density and flow again. Adjust one mechanism at a time.
PCE Should Create Flow by Dispersion, Not by Extra Water
One of the most useful functions of polycarboxylate superplasticizer is allowing high flow at a controlled water demand.
The polymer adsorbs on cementitious particles and improves dispersion so that the mixture can move more easily without relying only on additional mixing water. Adding water to solve low flow creates several secondary risks: higher water increases segregation, bleeding, shrinkage, porosity, surface weakness and dimensional instability.
Formulation Target:
Required flow at the lowest practical water demand compatible with the complete binder system.
This does not mean maximum PCE dosage. Too much dispersion can reduce yield stress below the level that the particle grading and rheology package can stabilize.
MICHEM PCE Powder: One-Part Dry Blend Integration
MICHEM’s product architecture includes PCE Powder as the dry-powder route within the PCE superplasticizer family, allowing producers to incorporate superplasticizer directly into factory dry blends.
Slow PCE Activation Can Look Like Insufficient Dosage
Powder PCE has to dissolve before it can disperse cement effectively. If dissolution is slow relative to the jobsite mixing cycle, a mortar may appear stiff immediately after mixing and become much more fluid after resting.
That creates a dangerous field response: the installer may add extra water during the first minute because the compound looks too thick. A few minutes later, the PCE becomes fully active and the system is now over-watered, resulting in segregation or bleeding.
Testing Protocol:
Qualification should record not only final spread but how quickly flow develops after water addition.
Use the same dry-mix time, wet-mix time, rest period and remix procedure in every comparison. Grade code, active content, dosage, moisture, bulk density and packaging must come from the current approved MICHEM TDS and COA.

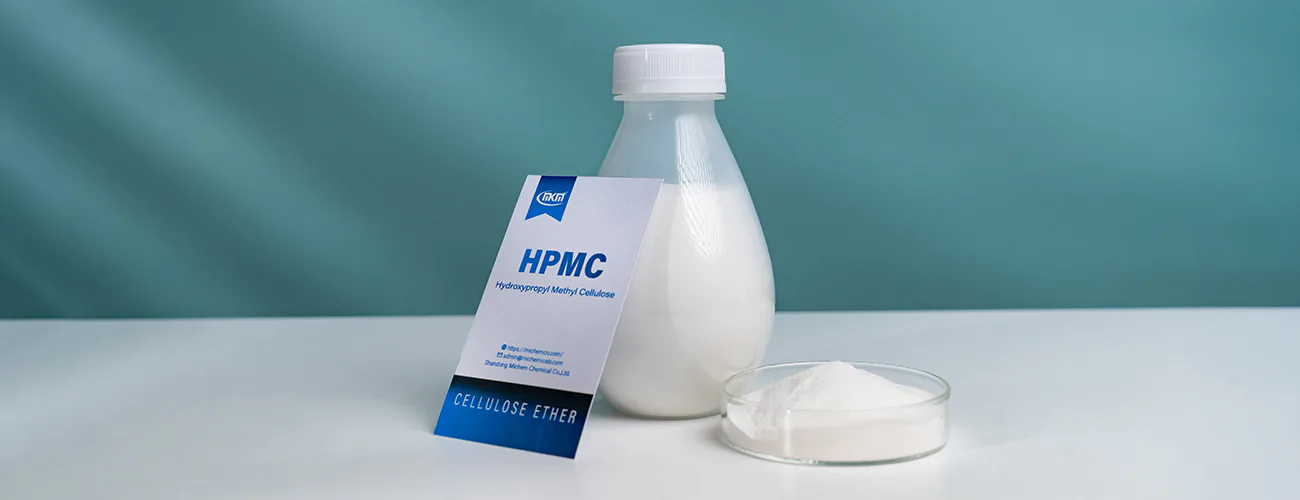

MH04K is the MICHEM HPMC Direction for Flow with Control
High-viscosity cellulose ether that is useful in a tile adhesive or wall render can be too structurally strong for a self-leveling mortar. MICHEM’s HPMC source set positions MH04K specifically at the low-viscosity end for self-leveling floor compounds.
Its formulation role is not to create a wall-mortar consistency. It is to provide a controlled rheological contribution while preserving gravity-driven spread and surface closure. A self-leveling system still needs enough aqueous-phase stability to limit separation, but the cellulose ether should not raise yield stress so far that the surface stops moving before it becomes flat.
Qualification Metric:
Evaluate MH04K by flow with control, initial and retained flow, segregation resistance, surface healing, air and setting—not by comparison with high-viscosity grades.
MH04K Low-Viscosity HPMC • Controlled Rheology
Surface Closure • Leveling Limit
More Cellulose Ether Can Stop Leveling Before It Stops Segregation
When a self-leveling compound begins to separate, increasing cellulose ether can seem like an obvious correction. But there is a limit: as continuous-phase viscosity and yield structure rise, the formulation may become stable while losing its ability to self-smooth, retaining rake marks, trowel transitions, edge ridges and pour boundaries.
The correct adjustment is to find the lowest rheology contribution that stabilizes the system while still allowing gravity to finish the surface. Particle grading, PCE level and water should also be reviewed before placing all responsibility on cellulose ether.
HPS Requires Particular Caution in Self-Leveling Systems
HPS 305 is a useful secondary rheology modifier for sag control in vertical mortars. But self-leveling compounds are different: the very mechanism that makes starch ether useful for sag control can reduce gravity-driven leveling if applied too aggressively. HPS should not be transferred from a wall-mortar formulation into a floor compound at the same dosage. If used, qualify it cautiously for segregation, flow retention, surface healing, air and setting.
RDP 5011L Specialty Polymer & DP500 Defoamer Optimization
Air is one of the main enemies of surface quality. Polymer modification and defoaming must be tuned with fresh flow requirements.
Self-Leveling Polymer
RDP 5011L Specialty Polymer
MICHEM positions RDP 5011L for self-leveling flooring compounds and screeds. Its supplier positioning includes contribution to cohesion, flexibility, crack resistance and adhesion while maintaining the needs of a flowable floor system.
RDP affects the fresh system too: it can change wetting, viscosity, cohesion, air, flow, setting and surface behavior. 5011L should be qualified together with PCE, cellulose ether and defoamer rather than added after fresh rheology is finished.
Core Qualification Question:
Can the selected polymer deliver required hardened performance while keeping flow, air and setting inside the allowable window?
Pinhole Reduction
DP500 Powder Defoamer
Self-leveling compounds are mixed vigorously, entraining air that cellulose ether and RDP can stabilize. If bubbles remain while the material spreads, they leave pinholes, craters, surface pits and local density differences.
MICHEM DP500 Powder Defoamer is a modified polyether powder positioned for bubble reduction, increased density/compactness and improved flow support.
Systematic Multi-Additive Sequence:
Fix water & binder → Optimize PCE → Establish minimum rheology stabilization → Add RDP → Measure air → Optimize DP500
Surface Closure, Controlled Setting & Dimensional Stability
A self-leveling floor compound must transition cleanly from a mobile liquid to an uncracked, dimensionally stable substrate.

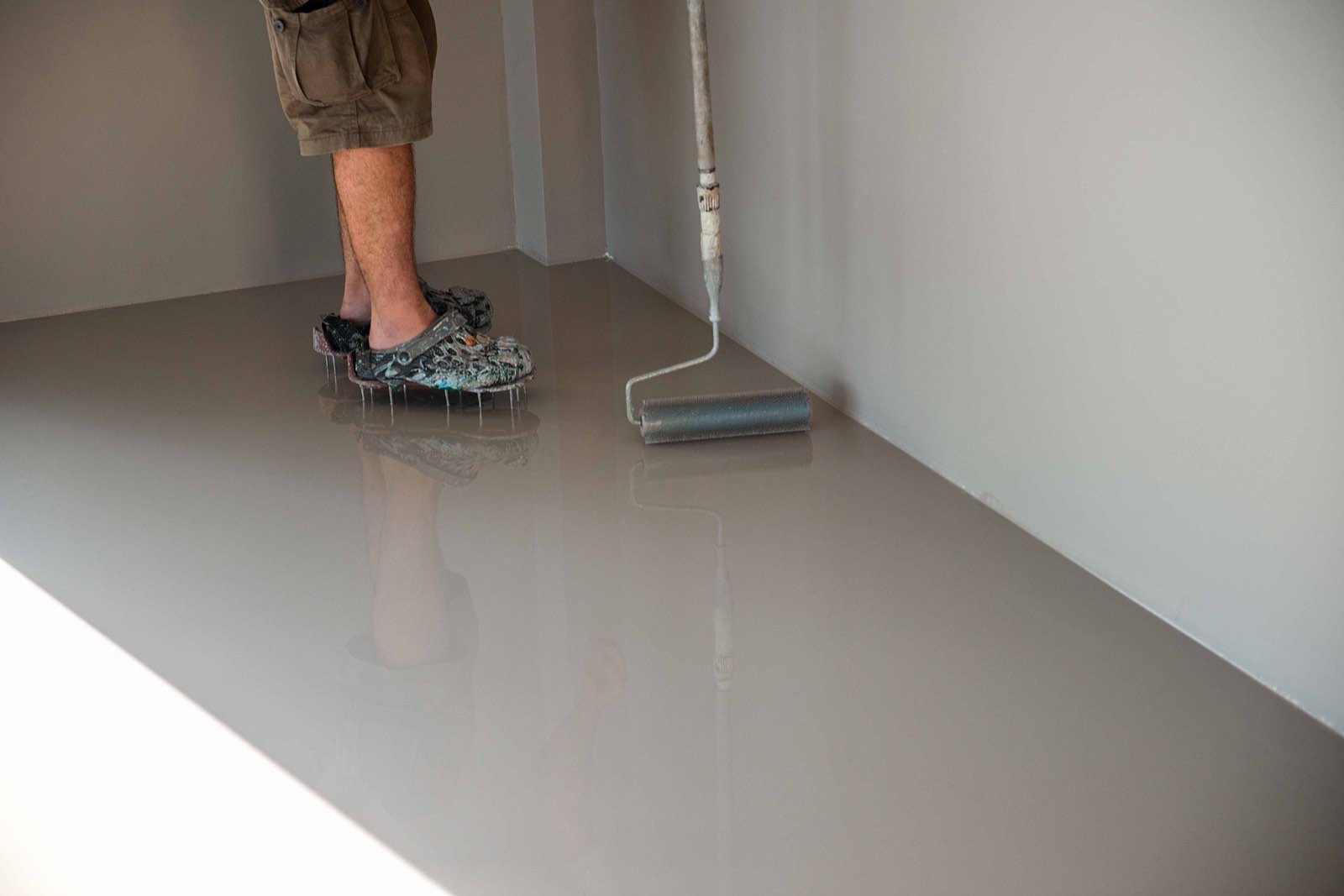

Surface Closure vs. Initial Flow
A compound can spread well and still leave a poor surface. Surface closure depends on whether the material remains mobile enough after placement to heal disturbances created by pouring, gauge rakes, smoothing tools, adjacent pour boundaries and spike rollers.
Healing time belongs in the qualification program: flow must be measured as a time-dependent process rather than one initial number.
Setting Kinetics Timing
Setting has to begin after the leveling work is complete. Premature stiffening reduces the self-leveling window, while delayed setting delays traffic, sanding or floor coverings.
Controlled Transition:
flow → placement → healing → loss of mobility → set → early strength
Set control should be optimized only after the required application window has been defined.
Early Strength & Dimensional Stability
Self-leveling compounds are often thin layers sensitive to drying shrinkage and substrate restraint. A high early-strength formulation can still fail if shrinkage creates edge lifting, cracking, debonding, curling or boundary stress.
Qualify for mechanical performance and dimensional stability together rather than chasing early compressive strength alone.
Standards Architecture: ASTM C1708, EN 13813 & BS 8204-7
Understand the performance fields and testing methods governing hydraulic self-leveling screeds and pumpable compounds.
ASTM C1708/C1708M
Directly addresses hydraulic-cement self-leveling mortars used as underlayments or overlayments. Covers initial flow, flow retention, healing time, setting, compressive and flexural strength for comparative evaluation.
BS EN 13813:2002
European standard for screed material and floor screeds. Applies to finished screed products, covering consistency, setting, compressive/flexural strength, bond strength, shrinkage/swelling and wear resistance.
BS 8204-7:2003
BSI code of practice for pumpable self-smoothing screeds. Emphasizes that formulations must survive real jobsite mixing equipment, pump shear, hose transport, discharge and finishing.
A Practical Self-Leveling Compound Qualification Workflow
Begin with the finished system target: underlayment or wearing layer, binder, substrate, thickness, hand/pump application, working time, early access, strength/adhesion and floor-covering schedule.
- Optimize water and PCE together under actual mixing time and cement system
- Screen MH04K as low-viscosity HPMC for stability without excessive structure
- Introduce RDP 5011L according to hardened adhesion, flexibility and cohesion needs
- Measure air and surface defects, then optimize DP500 when excess air is confirmed
- Record initial and retained flow, segregation, bleeding and wet density
- Verify surface healing time, pinhole absence, setting and early strength
- Repeat with realistic variations in cement, filler, temperature and dry blending
Common Troubleshooting Patterns & Solutions
Systematically identify flow, segregation, pinhole and dimensional failure mechanisms.
Initial flow is low
Check water, PCE activation, cement compatibility and MH04K level before simply adding more water.
Flow is high but edge separation appears
The system may be over-dispersed or under-stabilized. Review PCE, particle grading, cellulose ether and water.
The mix is stable but will not self-heal
The rheology package may be too strong or the set window too short. Review MH04K, any HPS contribution and set control.
Flow increases several minutes after mixing
Check PCE Powder dissolution and activation time. Do not let the installer compensate with extra water before the polymer becomes active.
Surface shows pinholes
Measure air and wet density. Confirm the actual mixing cycle and evaluate DP500 rather than assuming the binder is defective.
Adding defoamer reduces flow
Recheck PCE, wet density and cellulose-ether interaction. Air-control changes can alter the apparent rheology of the complete system.
Early strength is high but cracks appear
Review water demand, shrinkage, layer thickness, substrate restraint and binder balance. High early strength does not guarantee dimensional stability.
Which MICHEM Products Should Be Screened First?
This is a screening map, not a formulation recipe. Final grades and dosages must be qualified in the actual binder system.
| Formulation Need | MICHEM Screening Direction |
|---|---|
| High flow at controlled water demand | PCE Powder, using current approved grade documentation |
| Low-viscosity cellulose-ether stabilization | MH04K |
| Self-leveling polymer modification | RDP 5011L |
| Excess-air and pinhole control | DP500 Powder Defoamer |
| Secondary rheology adjustment | HPS 305 only where needed and with caution |
What Purchasing & R&D Should Provide to MICHEM
For a useful recommendation, providing the parameters on the right enables our specialists to configure the precise additive combination for your floor system.
Submit Floor Formulation DetailsInquiry Checklist:
- Binder chemistry • Mineral/filler grading • Sand curve
- Current PCE, cellulose ether and RDP grades and dosage levels
- Water demand • Initial flow • Retained flow at 20/30 minutes
- Air content • Wet density • Setting time window
- Principal failure: edge separation, poor healing, pinholes, cracking
- Application route (hand pour vs. continuous pump) • Layer thickness
- Early-strength requirements • Subsequent floor-covering schedule
Frequently Asked Questions
Technical answers for self-leveling floor compound formulators and plant engineers.
Build the Floor Around a Controlled Loss of Resistance
Self-leveling compounds work because the formulation begins with low enough resistance to move and then develops structure and strength at the correct time.
MICHEM Core Logic:
PCE → Disperse the binder and reduce water demand
MH04K → Add only the rheological stability needed to keep suspension controlled
RDP 5011L → Provide required polymer modification without sacrificing flow
DP500 → Remove excessive air that reduces density or damages surface quality
Then verify the complete sequence: flow → retain flow → remain homogeneous → release air → heal the surface → set → develop strength and adhesion. The best compound is not the one with the largest spread. It is the one that produces a flat, dense, homogeneous and dimensionally reliable floor under real mixing and placement.
Sample Testing • Lab Supported
