Roads & Pavements Concrete Solutions
Concrete pavement performance is not controlled by compressive strength alone. The primary design question is: What must the pavement continue to do after shrinkage, temperature change and repeated wheel loading begin to act?
No additive or fiber eliminates the need for pavement design, joint engineering, curing or load-transfer detailing. Admixture and fiber screening must align directly with the structural life cycle.

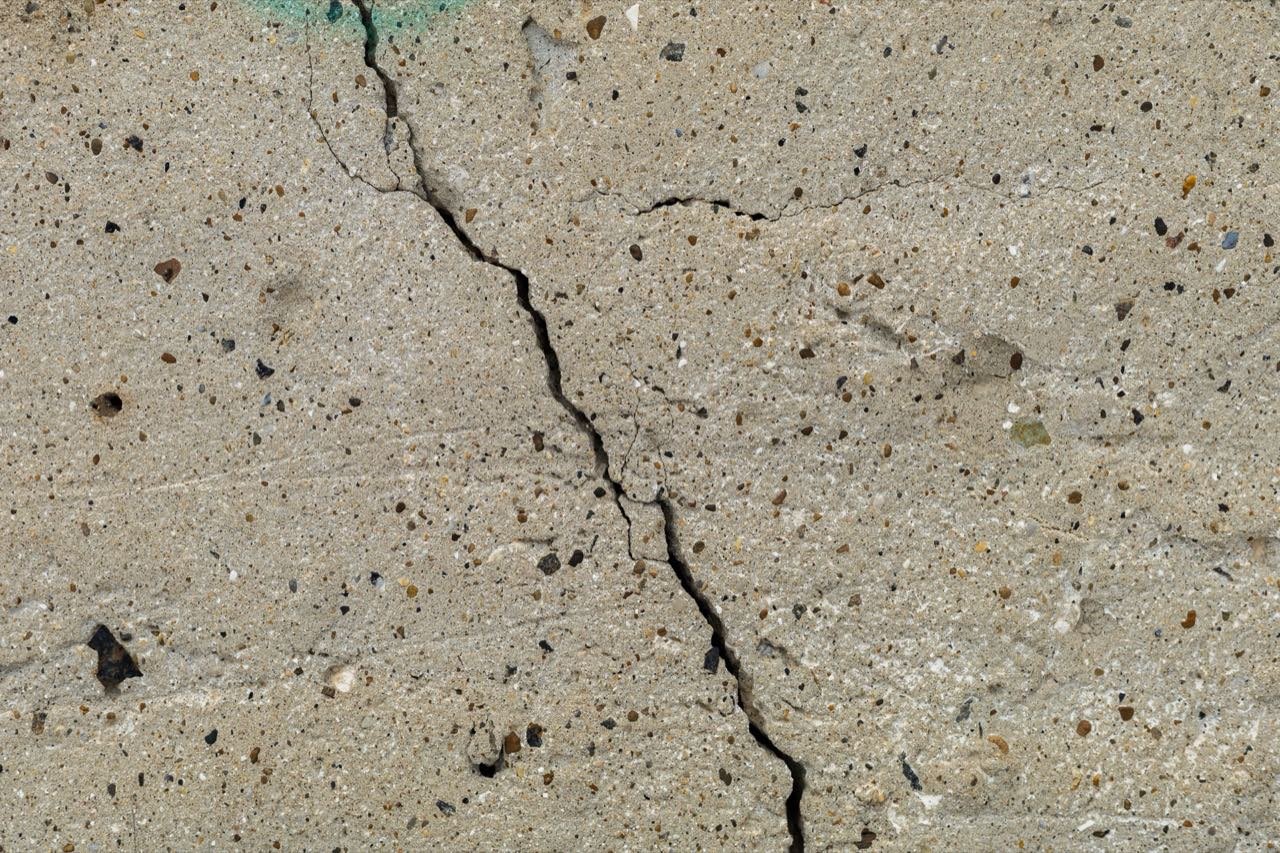

Pavement Cracking Has More Than One Origin
A pavement crack should be classified before a fiber or admixture is selected. Early plastic cracking and long-term structural fatigue are entirely different engineering problems.
A microfiber that helps reduce plastic shrinkage cracking is not automatically a structural fatigue solution. Conversely, a macrofiber selected for residual post-crack capacity does not remove the need to control early-age moisture loss.
Dual Engineering Imperative: The pavement concrete system must address both the formation of cracks at early ages and the behavior of the slab after cracks form under service traffic.
Water Demand & PCE Qualification for Slipform
Concrete pavement needs enough workability for batching, transport, slipform or fixed-form placing, consolidation, texturing and finishing. Adding water is the simplest way to increase workability, but it severely degrades strength, shrinkage resistance, and permeability.

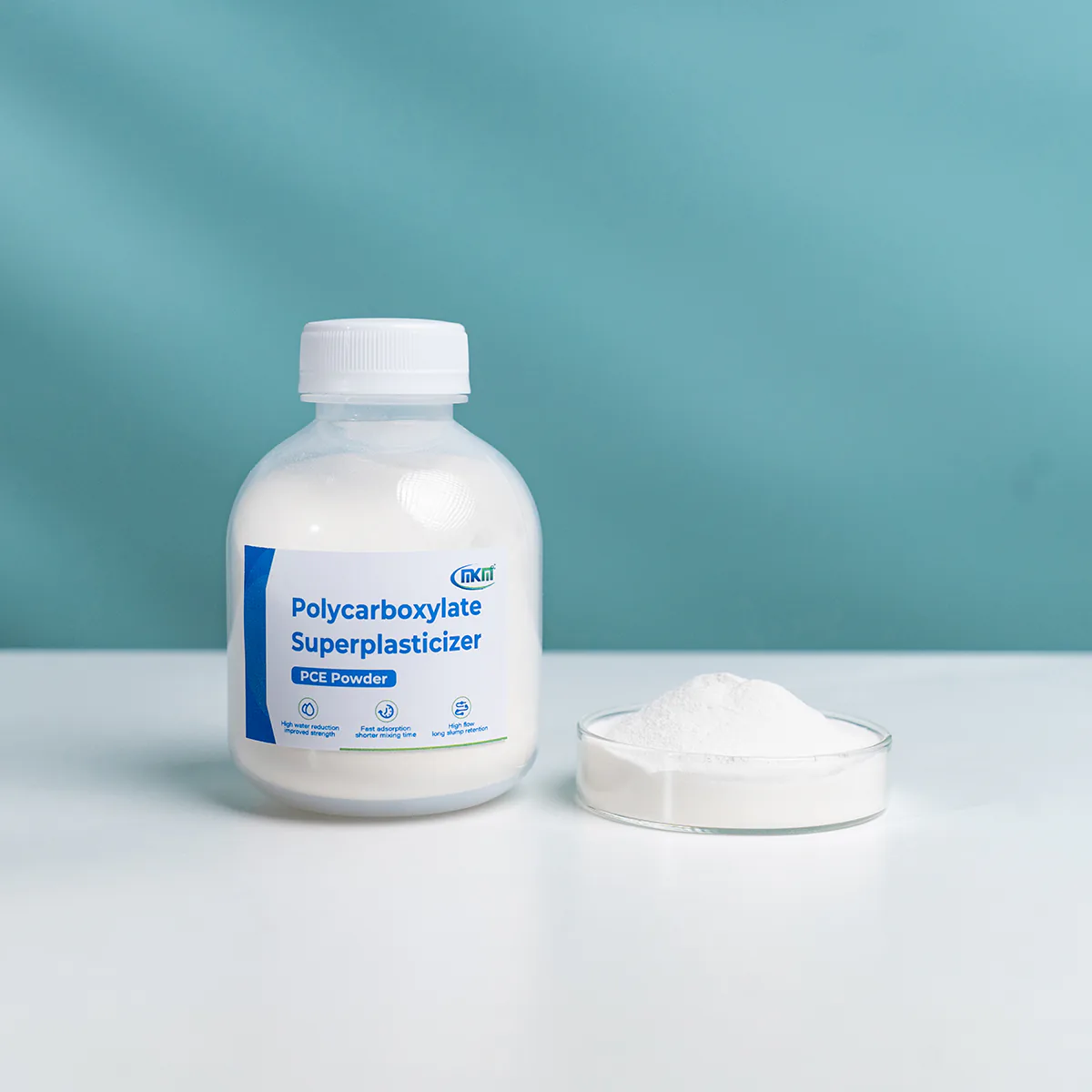

PCE for Pavement Engineering: Polycarboxylate ether (PCE) offers high-range water reduction while preserving placing consistency. However, pavement PCE selection must not chase maximum laboratory spread. Slipform paving often requires a comparatively stiff but stable concrete that holds its edge shape immediately after the paver passes.
Process-Specific Qualification: Cement chemistry, supplementary materials (fly ash, slag), aggregate fines, temperature, and addition sequence alter polymer response. Qualify the PCE with actual cement, SCMs, aggregates, air system, and paving equipment.
Plastic Shrinkage (ASTM C1579) & Drying/Thermal Strains

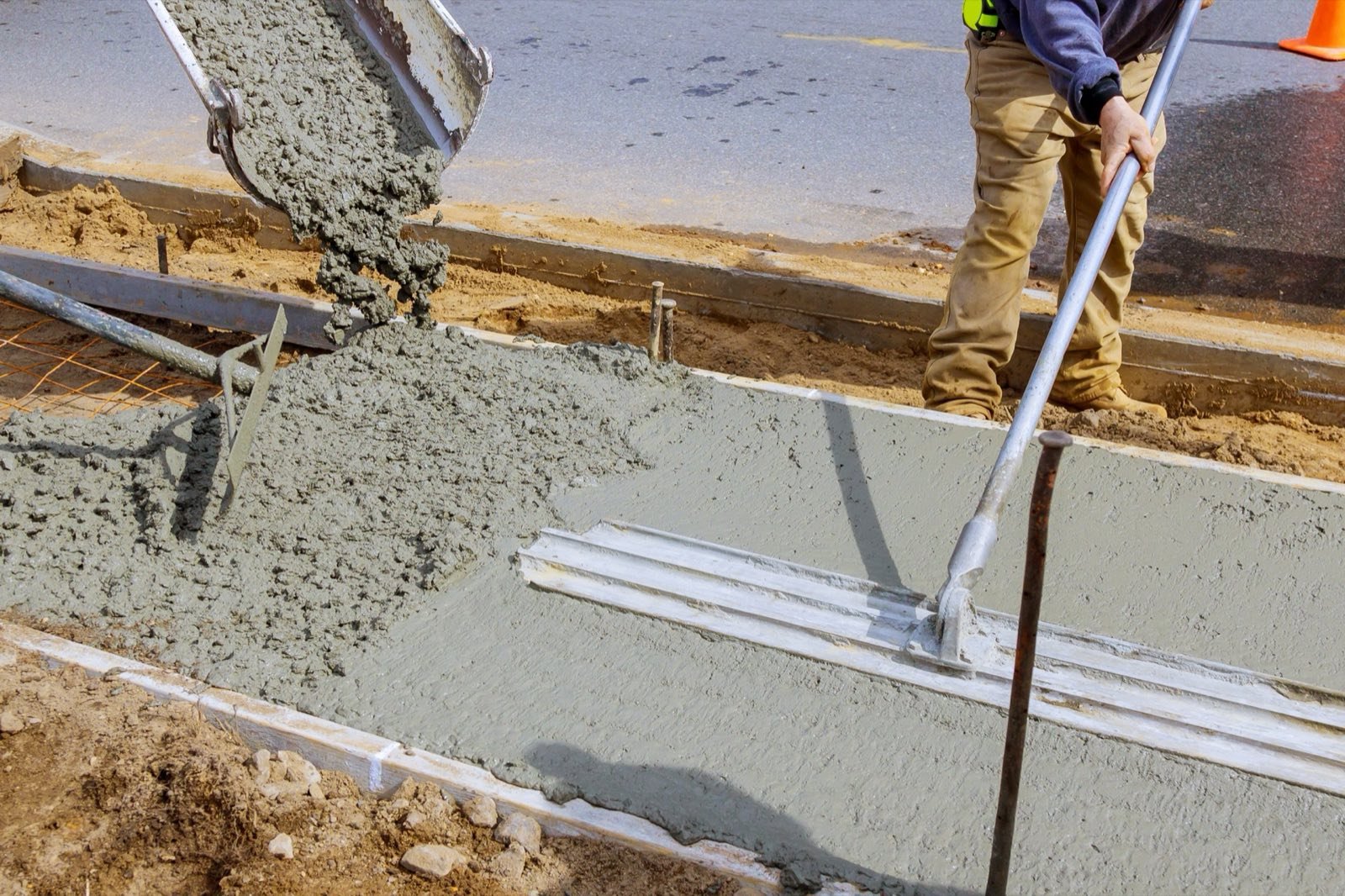

Exposed Surface Evaporation: Pavements feature an expansive exposed surface area and lose moisture rapidly. When evaporation exceeds bleeding before final set, the near-surface concrete contracts while tensile capacity is minimal. Hot concrete, dry air, and wind elevate risk.
MICHEM PP Monofilament Fiber: Positioned specifically for this early crack-control stage. Fine PP microfibers distribute early capillary stresses but do not stop evaporation, do not eliminate drying shrinkage, do not replace curing, and should not be marketed as structural pavement reinforcement.
ASTM C1579-21 Testing: Evaluates plastic shrinkage cracking in restrained fiber-reinforced concrete panels under prescribed airflow and temperature. It provides a controlled early-age comparative benchmark, not a guarantee of a crack-free field life.
Hardened Volume Changes: After setting, drying shrinkage and thermal contraction/expansion create tensile stresses restrained by the base or adjoining slabs. Designers must manage slab geometry, joint timing, subbase friction, and thermal history.
Joint Sawing, Dowel Load Transfer & Fatigue Resistance
Jointed concrete pavement relies on planned cracks. Transverse contraction joints provide intentional relief for shrinkage and thermal movement rather than permitting random uncontrolled fractures.
Contraction Joint Sawing
Late sawing permits uncontrolled cracking before joints activate. Admixture or accelerator changes that alter concrete setting also shift the critical sawing window, requiring strict field monitoring.
Dowel Load Transfer
Dowel bars and aggregate interlock transfer wheel loads across joints. A distributed fiber network should not be assumed to replace an engineered dowel system under heavy channelized highway traffic.
Fatigue Demand
Pavements experience millions of repeated heavy axle cycles. Fiber modifies post-crack response and slows crack propagation, but fiber tensile strength does not directly replace pavement fatigue analysis.
ASTM C78 vs ASTM C1609 Testing
Conventional pavement design utilizes concrete flexural strength (modulus of rupture) as a primary material input.
ASTM C78/C78M: The standard third-point loading test method for flexural strength of concrete beams. It defines the uncracked matrix capacity and first-peak rupture limit.
ASTM C1609/C1609M-24: The performance test method for fiber-reinforced concrete. It differentiates first-peak strength from post-crack residual flexural strength at specified beam deflections (e.g., L/600 and L/150).
These two parameters govern different phases of pavement life and must never be substituted for one another in structural design models.

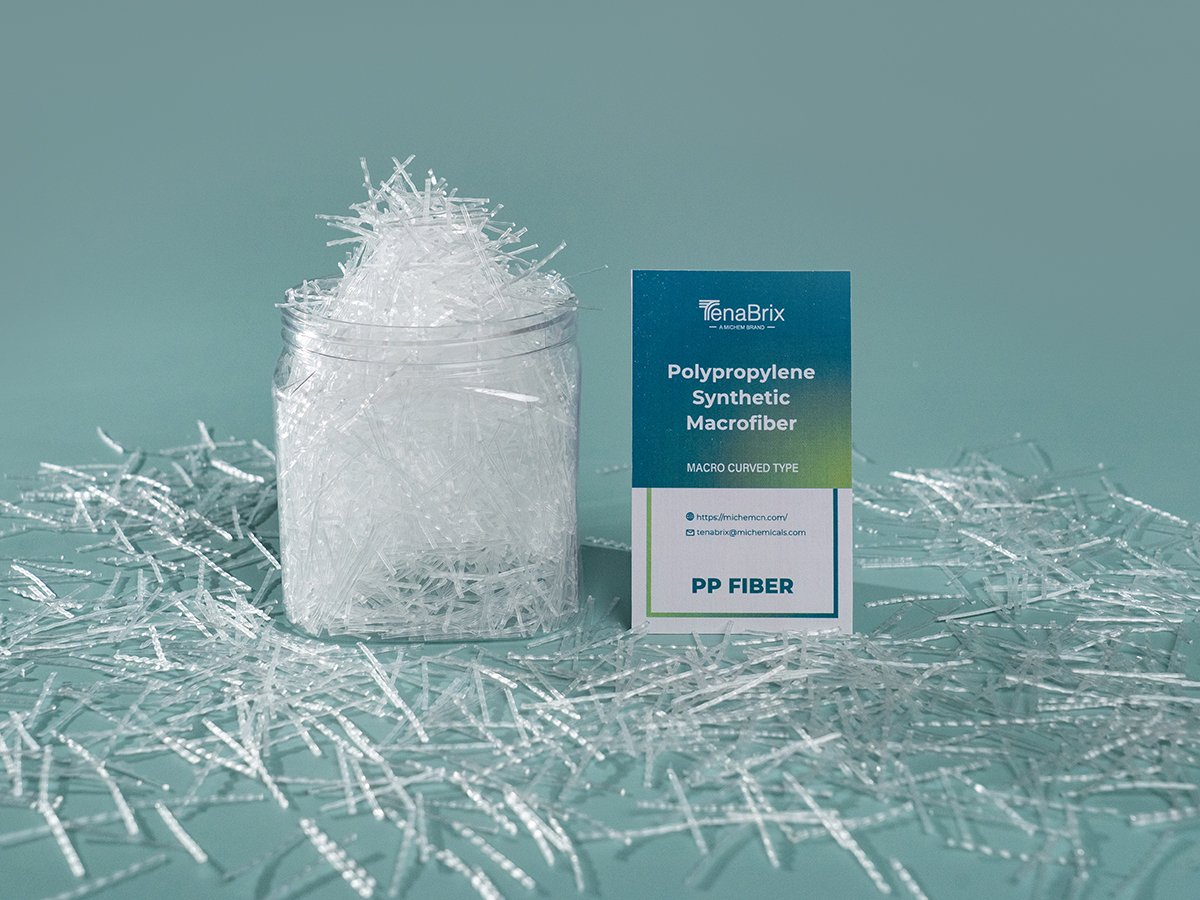

Embossed & Twisted Macro-Synthetic Fibers
MICHEM/TenaBrix technical documentation specifically positions Embossed and Twisted Macro-Synthetic Fibers for road, bridge, and airport concrete pavement applications.

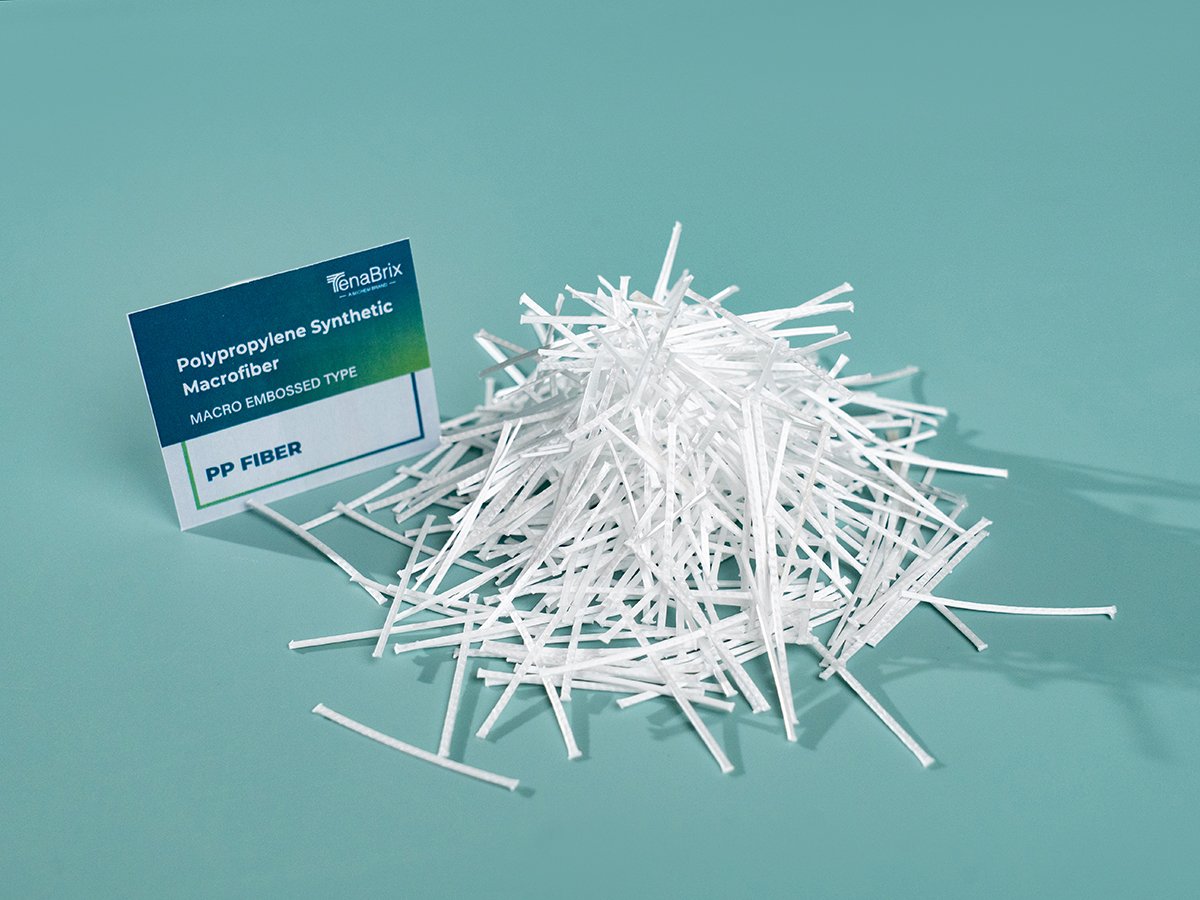

Embossed Macrofiber
Engineered with continuous surface indentations for mechanical bond. Length range: 20–60 mm, tensile strength: 400–450 MPa, elastic modulus: ≥4500 MPa. Length and dosage must be qualified in the actual pavement mix rather than publishing one generic dosage.

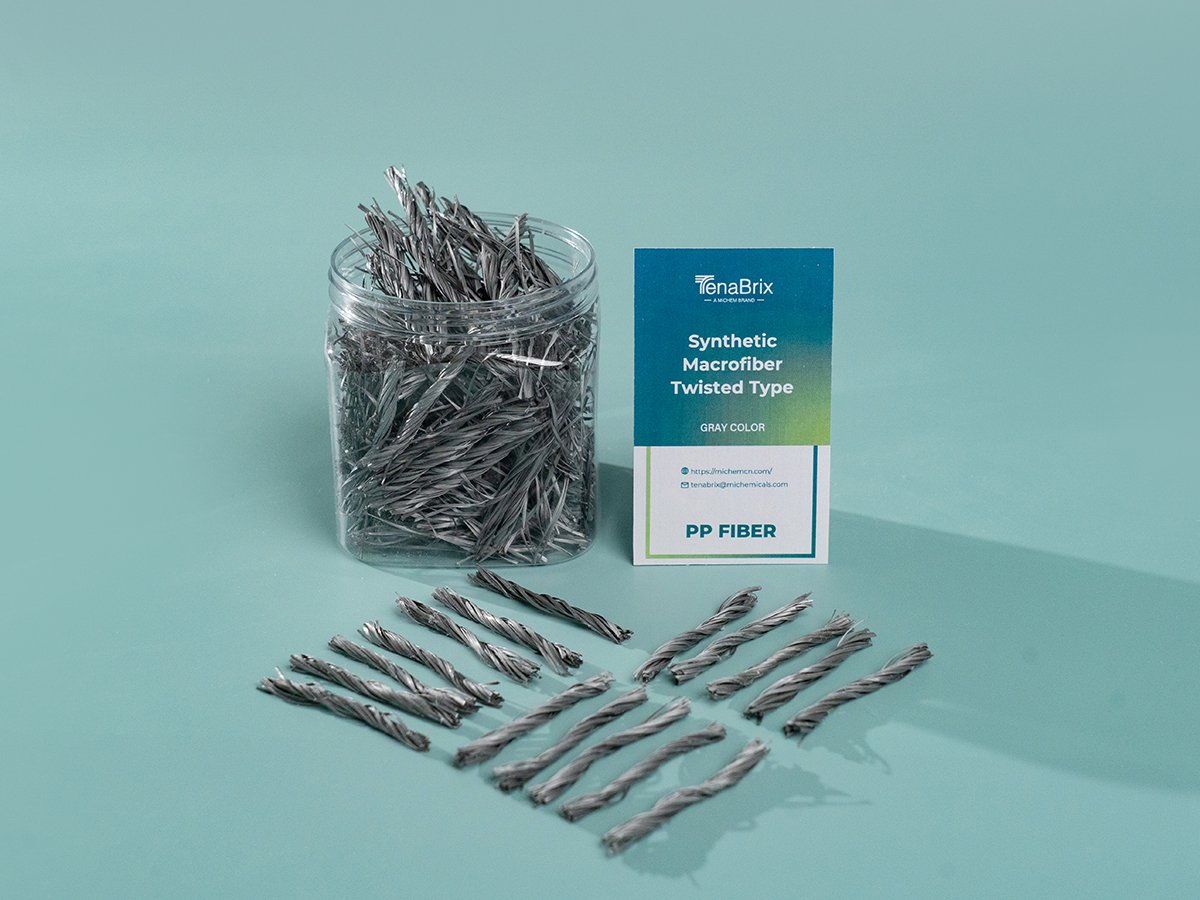

Twisted Macro-Synthetic Fiber
Features a twisted multi-filament mechanical lock. Nominal lengths: 48 mm and 54 mm, nominal diameter: 0.3 mm, tensile strength: ≥500 MPa, elastic modulus: >3500 MPa. Delivers distinct pullout mechanics under high dynamic impact.
Fiber Orientation & Workability Rebalancing
Paving Flow & Orientation: Slipform paver extrusion, vibratory consolidation, and screeding direction create preferred fiber alignments. A laboratory beam with hand casting may not reflect field pavement fiber distributions. Production-scale placement confirms representative crack-bridging performance.
Workability as a Structural Issue: Macrofibers increase mechanical shear in fresh concrete. Attempting to restore workability by adding uncontrolled water at the paver severely degrades water-to-binder ratio, strength, and durability.
Abrasion Resistance (ASTM C944) & Freeze-Thaw (ASTM C666)
Surface Abrasion (ASTM C944/C944M-19): Highway and airport pavements must resist traffic wear, studded tires, and dragging. ASTM C944 provides a rotating-cutter method for surface abrasion resistance. Fibers enhance bulk matrix toughness, but surface wear depends on paste quality, aggregate hardness, texturing, and curing.
Freeze-Thaw Resistance (ASTM C666/C666M-26): In cold climates, critically saturated concrete deteriorates under repeated freeze-thaw cycles. Air entrainment is the primary defense.
Because PCE superplasticizers interact directly with air-entraining admixtures, the total air-void system must be requalified whenever chemical admixtures change. ASTM C666 Procedure A and B evaluate rapid freezing-and-thawing durability.
Curing Discipline: FHWA field guidance emphasizes proper curing as a core control for early shrinkage and durability. Curing must begin immediately following texturing and remain compatible with saw-cutting schedules.
Practical MICHEM Screening Map
Mapping specific pavement engineering challenges to targeted MICHEM and TenaBrix product directions.
| Pavement Problem | MICHEM / TenaBrix Direction to Screen | What Must Be Verified |
|---|---|---|
| Excess water demand / difficult placing | PCE family | Workability, edge stability, air, setting, finishing and strength |
| Plastic shrinkage / settlement cracking | PP Monofilament Fiber | ASTM C1579-type comparison, dispersion, paving and curing |
| Structural post-crack residual demand | Embossed Macrofiber | Current length grade, residual test, workability, orientation and design |
| Structural post-crack residual demand | Twisted Macro-Synthetic Fiber | Current grade data, residual test, paving process and long-term design |
| Metallic FRC route | Steel / Hooked-End Steel Fiber where project-supported | Residual performance, constructability, durability and design acceptance |
| Freeze-thaw exposure | Complete air-entrained pavement system | Air, ASTM C666/C666M where specified, saturation/drainage and field QC |
* Note: This screening table is an application selection guide and does not replace formal highway pavement structural design calculations.
Practical Pavement Qualification Workflow
Begin by defining structural pavement parameters: type, thickness, base support, design traffic, joint spacing, load-transfer concept, design flexural strength, shrinkage limit, freeze-thaw exposure, and placement machinery.
Build a comprehensive dosage series in the actual paving concrete and measure:
Common Roads & Pavements Troubleshooting Patterns
Root-cause diagnostic analysis for highway and airport pavement placement, cracking, faulting, and durability issues.
Cracks Within Hours of Placement
Investigate evaporation rate, concrete temperature, wind speed, bleeding, finishing, and curing. If plastic shrinkage is confirmed, PP microfiber is relevant; macrofiber dosage is not the primary intervention.
Cracks Develop Years Later Under Traffic
Review fatigue life, slab thickness, subbase support, joint spacing, and load-transfer efficiency. Do not diagnose long-term structural fatigue as an early-age microfiber issue.
Joint Faulting Develops Across Slabs
Evaluate dowel bar alignment, load-transfer efficiency, subbase erosion, pumping, and drainage. Fiber reinforcement alone cannot correct inadequate joint load transfer under channelized traffic.
Macrofiber Concrete Difficult to Pave
Review fiber geometry, dosage, aggregate grading, paste volume, mixing time, and PCE superplasticizer. Never attempt to recover slipform workability by adding uncontrolled water.
Residual Beam Results Show High Scatter
Check fiber dispersion, casting orientation, actual supplied length, specimen production compliance, and fresh concrete consistency under ASTM C1609 test protocols.
Surface Wears Despite High Compressive Strength
Treat abrasion and near-surface paste quality as separate performance fields. Review coarse aggregate hardness, texturing, curing compound application, and ASTM C944 wear testing.
Freeze-Thaw Performance Shifts With New PCE
Requalify the air-entraining admixture package. Superplasticizer chemistry shifts can alter air-void spacing factors and total fresh air content under ASTM C666 protocols.
Supplier Proposes Eliminating Joints With Generic Dosage
Require recognized pavement design methodology and verified project-specific residual performance. Never approve generic “joint-free” marketing claims without structural design evidence.
What Purchasing & Engineering Should Provide to MICHEM
For a precise road, airport, or heavy pavement recommendation, submit the following project parameters:
Technical & Specification Insights
Key questions regarding pavement admixtures, synthetic fibers, joint strategies, and durability standards.
Design Around Repeated Service, Not One Strength Result
Road and pavement concrete must survive a sequence of mechanisms: shrinkage, thermal movement, dowel load transfer, fatigue, and environmental exposure. Screen PCE for controlled slipform water reduction, PP Monofilament Fiber for early plastic cracking, and TenaBrix Embossed or Twisted Macro-Synthetic Fibers where verified post-crack residual performance is required.
support → slab geometry → water demand → early shrinkage → joints and load transfer → repeated traffic → cracking → residual performance → surface wear → environmental durability → curing and QC
