Repair Mortar Additives & Formulation Architecture
Repair mortar succeeds only when the new material becomes compatible with the old concrete. High compressive strength alone is insufficient: weak substrate, poor wetting, sag, restrained shrinkage, or water ingress can cause premature debonding.
Diagnose Concrete Failure Before Designing the Repair
Repair begins before the mortar is mixed. Existing concrete may have deteriorated due to reinforcement corrosion, freeze-thaw cycles, mechanical abrasion, impact, aggressive chemical attack, water ingress, or structural overloading.
Simply chipping away loose aggregates and filling the cavity without neutralizing the root degradation mechanism will reproduce failure. For formulation chemists, exposure severity dictates which mechanical vectors deserve priority.
Substrate Strength Sets the Ceiling for Interface Bond
A polymer-modified mortar cannot create a durable bond on friable, dusty, or micro-cracked concrete. Unsound laitance, oils, and curing membranes form a shear plane far weaker than the polymer matrix itself.
Testing via direct tension (ASTM C1583 / EN 1542) must evaluate both numerical tensile capacity and the exact fracture plane. Cohesive failure inside sound concrete represents optimum transfer, whereas interface separation indicates poor contact.
Surface Preparation Governs Mechanics & Water Movement
Mechanical preparation alters roughness, macro-texture, open porosity, capillary suction, and moisture balance. Extremely dry, highly porous substrates rapidly pull mixing water out of fresh mortar, starving cement crystals at the contact zone.
Conversely, standing ponded water dilutes the interfacial water-cement ratio and generates weak separation films. Specifications must strictly govern substrate pre-wetting (SSD condition) and bonding primer application.
Water Retention Preserves Fresh Contact & Hydration
Upon contact with the substrate, fresh mortar experiences intense dewatering through capillary suction and atmospheric evaporation while hydration reactions initiate. Rapid desiccation leads to premature skinning and defective interfacial interlocking.
MICHEM HPMC and HEMC control fresh rheology and water mobility. The engineering objective is balanced retention: safeguarding cement hydration and open time without inducing excessive trowel tackiness or retarding early set.
HEMC & HPS 305: Decoupling Anti-Sag from Trowel Heaviness
MICHEM HEMC delivers robust thickening, thermal stability, and sag resistance for vertical/overhead repair patches. However, relying solely on high-viscosity cellulose ether to eliminate slump often creates severe trowel drag.
MICHEM HPS 305 (Hydroxypropyl Starch Ether) provides pseudoplastic yield-stress build. It builds high static rest structure to hold heavy layer builds while shearing thin under blade movement.
Build Thickness & Restrained Shrinkage Stress
Layer thickness governs hydration heat, moisture dissipation profiles, and internal shrinkage strain. Thin laboratory patches do not predict deep section behavior where restrained volume contraction generates high interfacial shear.
When drying and autogenous shrinkage exceed tensile capacity, edge curl, delamination, and map cracking emerge. Adding excess mixing water to improve feather-edge blending guarantees severe volumetric shrinkage later.
RDP Selection: Multipurpose vs Hydrophobic Focus
Redispersible polymer powders bridge micro-cracks, reduce elastic modulus, and enhance interfacial adhesion. MICHEM offers targeted polymer architectures tailored to specific repair exposures:
- RDP 5010R (Multipurpose): Enhances flexural elasticity, adhesive strength, impact absorption, and workable plasticity across standard structural and non-structural mortars.
- RDP 5034H (Hydrophobic): Integrates hydrophobic silane/polymer chains to suppress liquid water uptake and chloride migration in wet exterior infrastructure.
Early Strength & Non-Chloride Acceleration

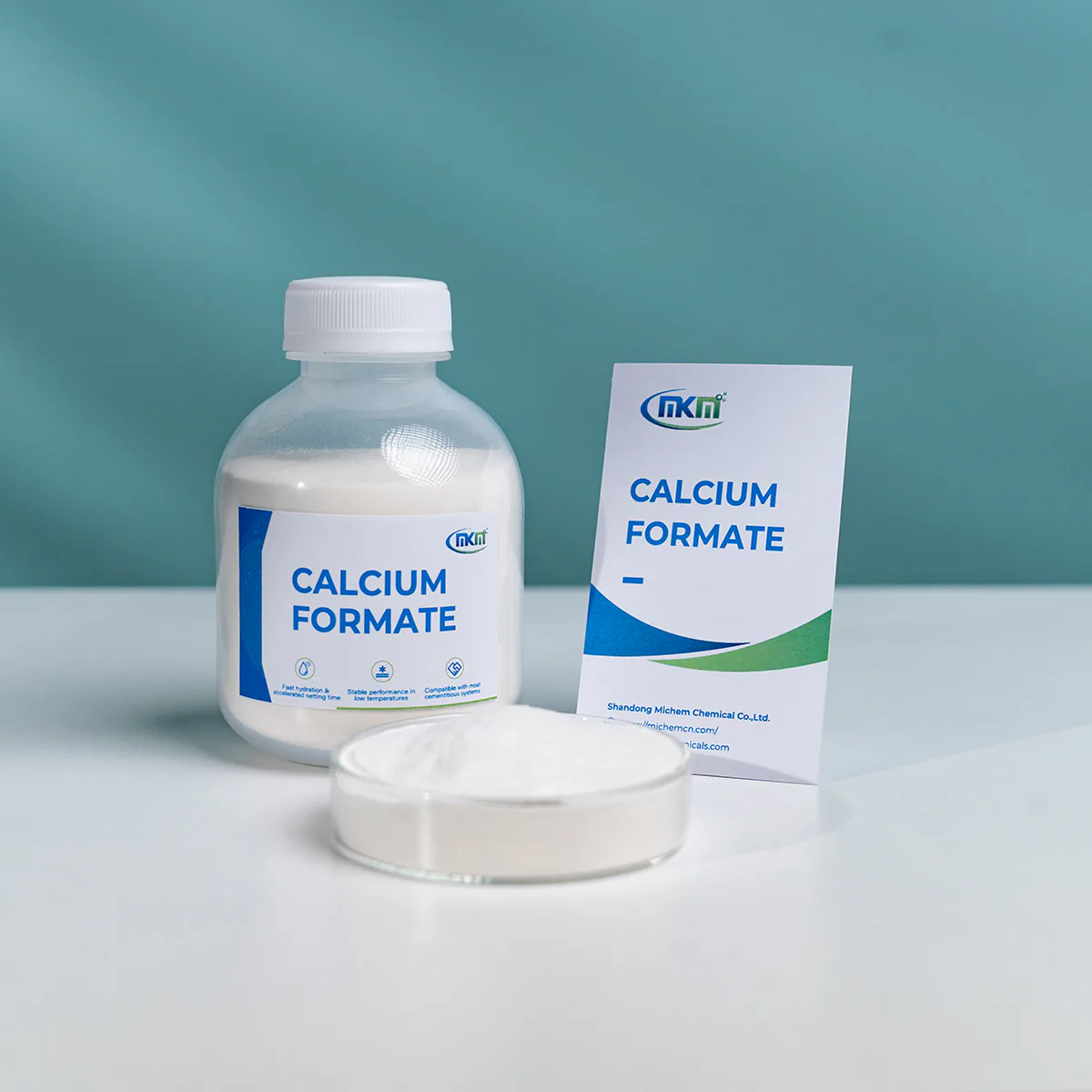

Rapid traffic return and cold-weather placement require accelerated cement hydration. MICHEM Calcium Formate (Purity ≥ 98.0%, Total Ca ≥ 30.0%) promotes early tricalcium silicate dissolution without inducing reinforcement corrosion.
Accelerator dosage must be co-developed with cellulose ether. Accelerating crystal growth reduces pot life, so final consistency and vertical compaction must remain fully operable under actual jobsite temperatures.
Air Void Control & Density Optimization
Uncontrolled air entrainment lowers wet density, weakens mechanical modulus, and generates interfacial pinholes. Porous boundary layers compromise freeze-thaw scaling resistance and permit rapid chloride penetration.
MICHEM DP500 Powder Defoamer suppresses macro-foam generated during high-shear batching. DP500 should be evaluated when excess air or spongy blade feel is verified, optimizing packing density and interfacial contact.
Testing Frameworks: EN 1504-3, ASTM C1583 & C928
Material qualification must follow established international standards governing structural (R3/R4) and non-structural (R1/R2) repair systems:
- BS EN 1504-3:2005: Core framework for repair mortars, classifying compressive strength, bond adhesion, carbonation resistance, and elastic modulus compatibility.
- BS EN 1542 / ASTM C1583: Direct-tension pull-off methods measuring interfacial adhesion and failure plane dynamics.
- ASTM C928/C928M-25: Packaged rapid-hardening cementitious repair materials with strict length-change and slant-shear bond limits.
- BS EN 13687-1:2002: Thermal freeze-thaw compatibility under de-icing salt immersion.
Mechanical Compatibility Rule
Repair material and host concrete share structural deformation. A repair mortar with excessively high elastic modulus concentrates stress at bond interfaces under thermal and live load cycles.
MICHEM Additive Matrix for Repair Mortar
Screening directions matched to concrete repair functional demands.
| Repair Performance Vector | Primary MICHEM Recommendation | Mechanism & Formulation Target |
|---|---|---|
| Water Retention & Workability | MICHEM HPMC / HEMC Family | Controls interfacial dewatering, open time, and fresh rheology |
| Vertical & Overhead Anti-Sag | MICHEM HPS 305 | Builds pseudoplastic yield stress without adding trowel stickiness |
| Multipurpose Polymer Adhesion | MICHEM RDP 5010R | Enhances flexural elasticity, bond, and shear stress distribution |
| Hydrophobic / Water Repellency | MICHEM RDP 5034H | Suppresses capillary water uptake and dissolved chloride ingress |
| Early Strength & Rapid Set | MICHEM Calcium Formate | Accelerates C3S hydration; non-chloride early strength |
| Air Void & Porosity Control | MICHEM DP500 Defoamer | Eliminates entrapment voids and optimizes interfacial density |
Troubleshooting Common Repair Mortar Defects
Systematic corrective pathways for fresh and hardened performance issues.
Low Bond Despite High Strength
Check substrate porosity, moisture status (SSD), micro-cracks, and failure location before increasing RDP. Ensure adequate water retention prevents interfacial drying.
Vertical Slump & Sagging
Review water demand and aggregate grading. If primary water retention is verified, incorporate HPS 305 as a secondary thixotrope to restore vertical hold.
Delayed Cracking & Edge Curling
Investigate high mixing water demand, aggregate fineness, curing methods, and modulus mismatch. Early compressive strength will not overcome restrained volumetric shrinkage.
Surface Pinholes & Air Pockets
Measure wet density and compaction methods. If excess air entrainment is confirmed, introduce DP500 Powder Defoamer into dry blending to restore packing density.
Frequently Asked Questions
Key technical clarifications regarding repair mortar additive screening.
Which MICHEM RDP is recommended for repair mortar?
RDP 5010R serves as the multipurpose screening grade for adhesion and flexural elasticity. RDP 5034H is specifically chosen where hydrophobic performance and reduced capillary absorption are mandatory.
Does hydrophobic RDP make repair concrete fully waterproof?
No. Hydrophobic RDP reduces liquid ingress through the mortar matrix itself. Cold joints, structural cracks, peripheral interfaces, and surrounding damaged concrete can remain active water pathways.
What is the role of Calcium Formate in repair mortar?
It accelerates early cement hydration kinetics without introducing corrosive chloride ions. It is ideal for rapid traffic reopening and cold-weather strength development.
Which European standard governs concrete repair mortars?
BS EN 1504-3:2005 is the central product standard specifying structural (R3, R4) and non-structural (R1, R2) repair classifications for cured mortar composites.
Repair the Interface, Not Only the Missing Volume
A successful repair mortar does more than fill a cavity—it forms a lasting bond with the host concrete under thermal, environmental, and structural loads.
Connect with MICHEM technical specialists to optimize your additive system for substrate adhesion, anti-sag rheology, shrinkage control, and early mechanical development.
