Gypsum-Based Mortar Formulation Solutions
Gypsum-based mortar must be formulated around working-time control and interlocking crystal network development, rather than copying Portland cement formulation logic.
Hardening by Rebuilding Calcium Sulfate Dihydrate
Building gypsum relies primarily on calcium sulfate hemihydrate ($$text{CaSO}_4 cdot 0.5text{H}_2text{O}$$). When blended with gauging water, the system shifts rapidly across connected stages:
Unlike silicate gel formation in cement, gypsum hardens via interlocking needle-like dihydrate crystals. Retarders modify ion solubility and crystal growth rates, while cellulose ethers alter both water retention and nucleation kinetics.
Working Time is More Useful Than One Set-Time Number
A laboratory Vicat needle set time is useful, but applicators experience a continuous sequence: mixing, pumping, spreading, leveling, smoothing, and final polishing. A formulation can become stiff and unworkable long before initial set occurs.
Enough usable open time → Predictable onset of stiffening → Reliable surface polishing → Rapid early mechanical strength.
Gypsum Source Changes Retarder Response
Two binders labeled identically can exhibit vastly different hydration kinetics. Calcination profile, $$alpha$$- vs. $$beta$$-hemihydrate ratio, residual dihydrate seed content, particle fineness, and synthetic FGD or phosphogypsum impurities all shift the response curve.
Procurement Rule: A retarder and cellulose ether package cannot be qualified independently of the gypsum source. Whenever switching calcination routes or binder suppliers, re-establish the dosage-response curve.
Water Demand Influences Porosity & Strength
Gypsum requires excess water beyond the stoichiometric amount ($$approx 18.6%$$) to achieve workable flow. As this unreacted gauging water evaporates during drying, it leaves porous capillary voids in the hardened dihydrate matrix.
Key formulation precautions:
- Never add excess water simply to compensate for an overbuilt, heavy rheology package.
- Uncontrolled water addition lowers hardened density, edge hardness, and compressive load capacity.
- Maintain fixed water-to-binder ratios during additive screening to isolate chemical effects.
MICHEM HPMC Platform for Gypsum Plaster
Cellulose ethers manage water retention against porous masonry and establish baseline rheology. Select grades according to application shear and body requirements.
MICHEM MH75K
Optimized for easy manual spreading, smooth troweling, low blade drag, and dependable water retention in hand-applied gypsum plasters.
View MH75K Data →
MICHEM MH100K
Provides enhanced body, extended working open time, and higher sag resistance on highly absorbent AAC and masonry substrates.
View MH100K Data →
MICHEM MH200K
High-viscosity construction grade designed for thick-layer gypsum leveling mortars requiring maximum water retention and vertical hold.
View MH200K Data →Do Not Change HPMC & Retarder at the Same Time
Cellulose ethers influence hemihydrate dissolution and dihydrate precipitation kinetics. If an engineer changes HPMC grade and simultaneously adjusts retarder dosage, the root cause of any performance shift becomes obscured.
This stepwise protocol eliminates formulation drift, prevents accidental over-retardation, and maintains clear causal relationships.
HPS 305: Refining Low-Shear Rest Structure
MICHEM HPS 305 hydroxypropyl starch ether acts as a secondary modifier. It introduces low-shear yield stress after the primary cellulose-ether platform has established the required water retention.
Division of formulation roles:
- HPMC / HEMC: Primary water retention, open time extension, and bulk viscosity.
- HPS 305: Secondary anti-sag control, thixotropic recovery, and creamy tool feel.
- Precaution: Excessive HPS can cause stickiness during knife smoothing; optimize dosage in the actual working window.
Hand Plaster vs. Machine Plaster Dynamics
Hand-applied and machine-sprayed gypsum plasters encounter completely different shear stresses, requiring customized rheology and retarder profiles.
Hand-Applied Gypsum Plaster
Demands light blade slip, creamy consistency, high initial tack to vertical surfaces, and an open manual correction window of 60 to 90 minutes before final polishing.
Machine-Applied Gypsum Plaster
Requires low viscosity under high rotor-stator pump shear, instant thixotropic recovery upon wall impact to prevent slumping, and longer retardation to accommodate machine transit.
Retarder-Accelerator Packages & Thermal Sensitivity
Combined Set-Control Packages: When formulations utilize dihydrate seeds or potassium sulfate accelerators alongside retarders, the goal is not to cancel additives, but to engineer an extended workable window followed by sharp stiffening and rapid early strength gain.
Temperature Drift: Gypsum crystallization is highly temperature-sensitive. Warm summer water ($$30^circtext{C}$$) accelerates dissolution and supersaturation, while cold winter materials retard kinetics. Establish a seasonal retarder adjustment protocol based on documented testing.
Finishing Quality, Air Entrainment & Standards
Over-retardation manifests as observable finishing defects on the wall long before compressive strength data is measured in the laboratory.
Surface Quality & Air Control
Over-retardation causes prolonged surface softness, edge tearing, and weak powdery skins. Furthermore, uncontrolled air reduces paste density. Measure wet density to ensure structural density without compromising lightness.
Standards: BS EN 13279 & ASTM C472
BS EN 13279-1/2 governs gypsum binder and plaster definitions and test methods in Europe. ASTM C472 provides physical testing standards for consistency, Vicat setting, and compressive strength.
MICHEM Additive Screening Directory for Gypsum Mortars
Screen additive solutions by the specific performance mechanism required in your gypsum formulation.
| Formulation Need | MICHEM Screening Direction | Operational Function |
|---|---|---|
| Primary water retention & rheology | HPMC or HEMC Platform | Prevents substrate water suction, regulates consistency, extends workable open window |
| Balanced hand plaster HPMC | MICHEM MH75K | Optimized for light troweling, smooth blade slip, and standard gypsum wall plasters |
| Enhanced body & vertical hold | MICHEM MH100K | Provides thicker paste body, higher sag resistance, and porous masonry stability |
| High-viscosity thick leveling plaster | MICHEM MH200K | High-viscosity grade for heavy leveling coats and thick-section gypsum applications |
| Secondary anti-sag refinement | MICHEM HPS 305 | Increases low-shear yield stress, enhances rest stability, eliminates vertical sag |

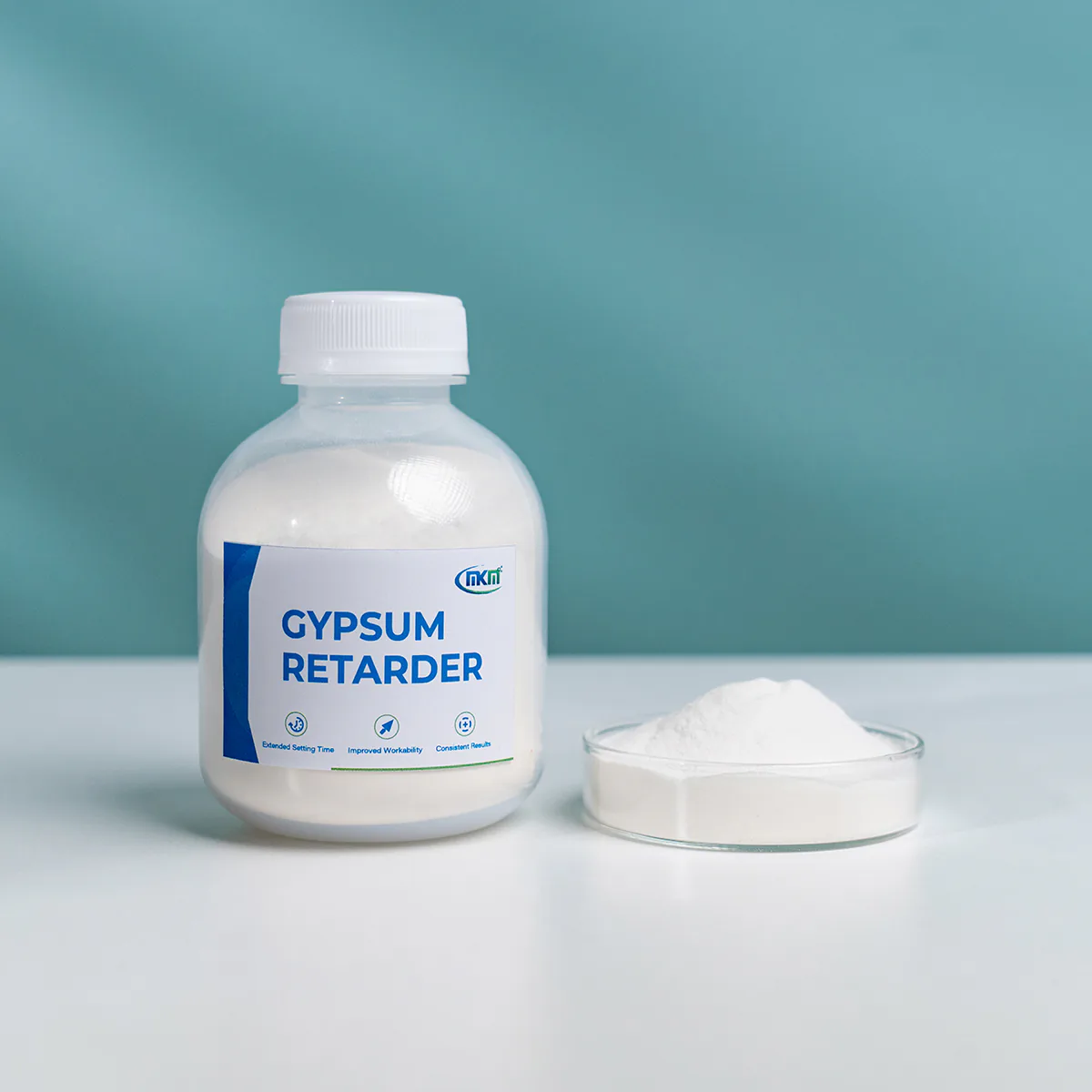

| Working-time & set control | MICHEM Gypsum Retarder | Regulates dihydrate crystallization kinetics to provide predictable setting windows |
* Final additive grades and addition levels must be verified within the specific customer gypsum binder.
Request Gypsum Mortar Sample KitTroubleshooting Gypsum Mortar Defects
Systematic root-cause resolution for gypsum plaster and mortar challenges.
Plaster Sets Too Quickly (Flash Set)
Check retarder dosing accuracy, ambient/water temperature, gypsum hemihydrate reactivity, residual seed contamination, and mixer cleanliness.
Small Retarder Increase Causes Long Delay
The system is operating on a steep region of the dosage curve. Improve micro-dosing precision and evaluate finer incremental addition steps.
Changing HPMC Shifts Setting Behavior
Cellulose ethers alter dissolution and precipitation kinetics. Fix the retarder level, quantify the HPMC effect, and then re-optimize set control.
Early Compressive Strength is Weak
Verify if excess gauging water was added during mixing. Check for over-retardation or alteration of dihydrate crystal interlocking structure.
Plaster Stable on Wall but Heavy to Finish
The rheology package is overbuilt or stiffening begins prematurely. Reduce HPS dosage or recalibrate the HPMC-to-retarder balance.
New Gypsum Source Changes Setting
Variations in calcination degree, soluble salts, and particle fineness alter chemical affinity. Rebuild the dosage curve on the new binder.
What Information to Provide for Technical Selection
To receive a precise additive recommendation for your gypsum-based mortar, provide our technical team with the following details:
- Gypsum Binder Type: Natural gypsum, FGD desulfurization gypsum, $$alpha$$- or $$beta$$-hemihydrate.
- Application Route: Hand-applied wall plaster, machine-sprayed plaster, or gypsum floor screed.
- Current Additives & Water Ratio: Active HPMC/HEMC viscosity, retarder type, accelerator, and water demand.
- Primary Target Defect: Flash setting, heavy trowel drag, vertical sagging, weak edges, or powdery chalking.
Frequently Asked Questions
Key technical answers regarding gypsum-based mortar formulation.
Which MICHEM HPMC grades are positioned for gypsum plaster?
MICHEM MH75K, MH100K, and MH200K are directly positioned for gypsum plaster, providing tailored water retention, sag control, and workable open time.
Can cellulose ethers (HPMC) influence gypsum setting?
Yes. Studies confirm that cellulose ethers alter hemihydrate dissolution and dihydrate nucleation kinetics, coupling rheology control with setting behavior.
Can HPS 305 replace HPMC in gypsum mortar?
No. HPMC or HEMC provides fundamental water retention and bulk viscosity, while HPS 305 acts as a secondary modifier to refine low-shear rest structure.
What is the function of MICHEM Gypsum Retarder?
It regulates the crystallization kinetics of calcium sulfate hemihydrate, providing an extended, predictable working window for machine or hand application.
Can one retarder dosage work across all gypsum sources?
No. Differences in calcination route, $$alpha/beta$$ phase ratio, particle fineness, and impurities alter retarder efficiency, requiring formulation-specific calibration.
Which standards govern gypsum plaster testing?
BS EN 13279-1/2 governs European gypsum binder and plaster definitions and test methods, while ASTM C472 provides physical testing frameworks.
Design the Gypsum Mortar Around the Transition from Workable to Set
Follow the formulation sequence: HPMC/HEMC (Water Retention & Rheology) → HPS 305 (Anti-Sag Refinement) → Gypsum Retarder (Workable Window & Setting Control).
