Concrete Crack Control: Diagnosis, Fibers & Additives
Crack control is not a single chemical mechanism. Concrete can crack while plastic, during cooling, under restrained drying shrinkage, or years later under structural fatigue. Identify the formation timing and driving strain before selecting fiber reinforcement or PCE admixtures.
Classify Concrete Cracking by Formation Timing
Cracks may exhibit similar surface appearances despite originating from completely different physical strains. Diagnosing the exact initiation age is the essential prerequisite to additive selection.
Primary classifications include plastic shrinkage, plastic settlement, restrained drying/autogenous shrinkage, thermal mass gradients, structural overstressing, and dynamic fatigue. Matching the corrective fiber or chemical technology to the wrong stage guarantees failure.
Plastic Shrinkage & PP Microfiber Strain Bridging
Plastic shrinkage cracking occurs when ambient evaporation outpaces bleed water replenishment. Capillary negative pressure develops in the fresh paste, causing volumetric contraction while tensile capacity is practically zero.

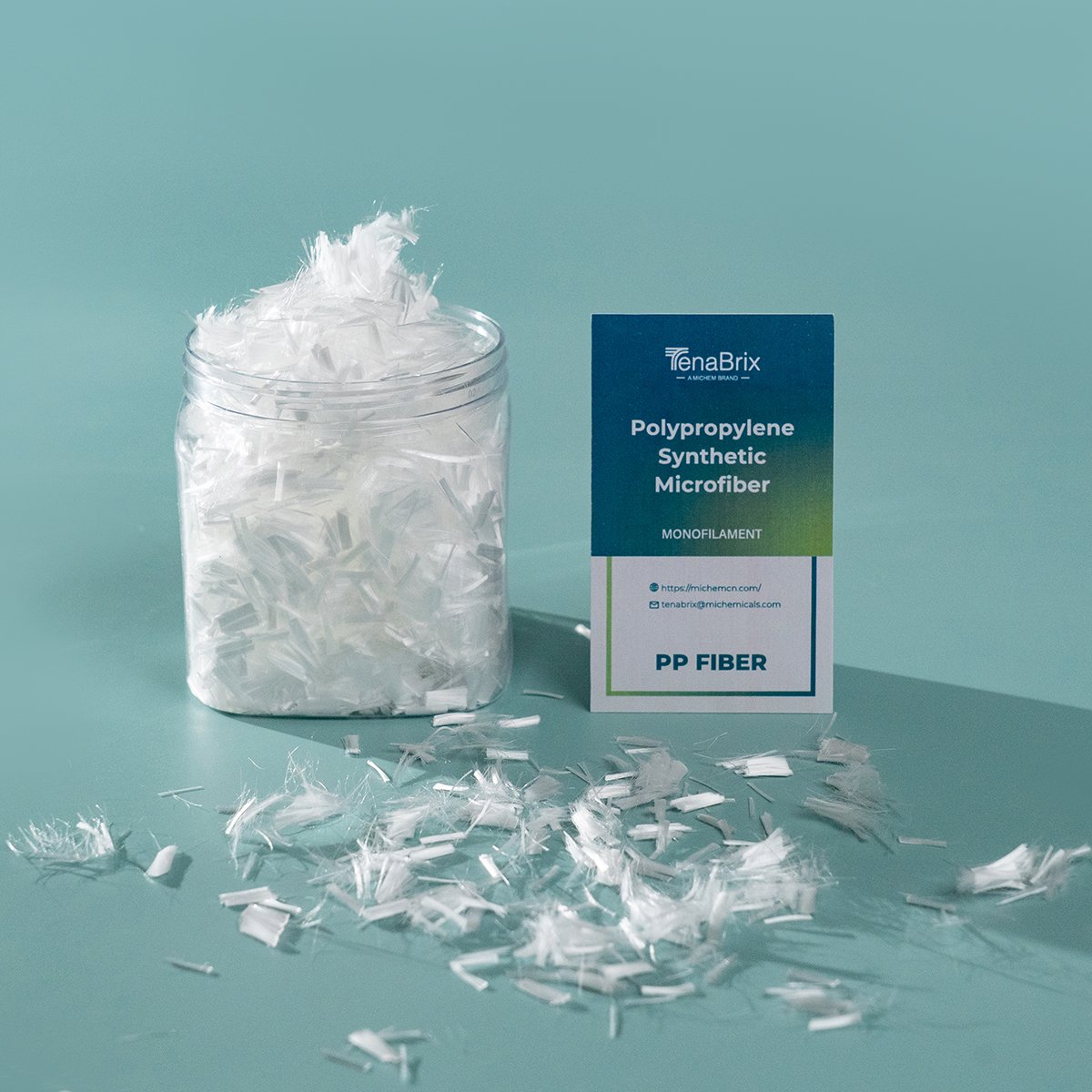

MICHEM Polypropylene Monofilament Fiber creates a dense 3D network of millions of microscopic filaments per kilogram. Per ASTM C1579-21 restrained testing, this micro-network intercepts tensile micro-strains, preventing localized fissure propagation across slabs and overlays.
Plastic Settlement Cracking & Dosage Optimization
Fresh concrete consolidates under gravitational settling. Where deep sections meet top reinforcing bars or abrupt geometry changes, differential subsidence produces linear surface tearing.

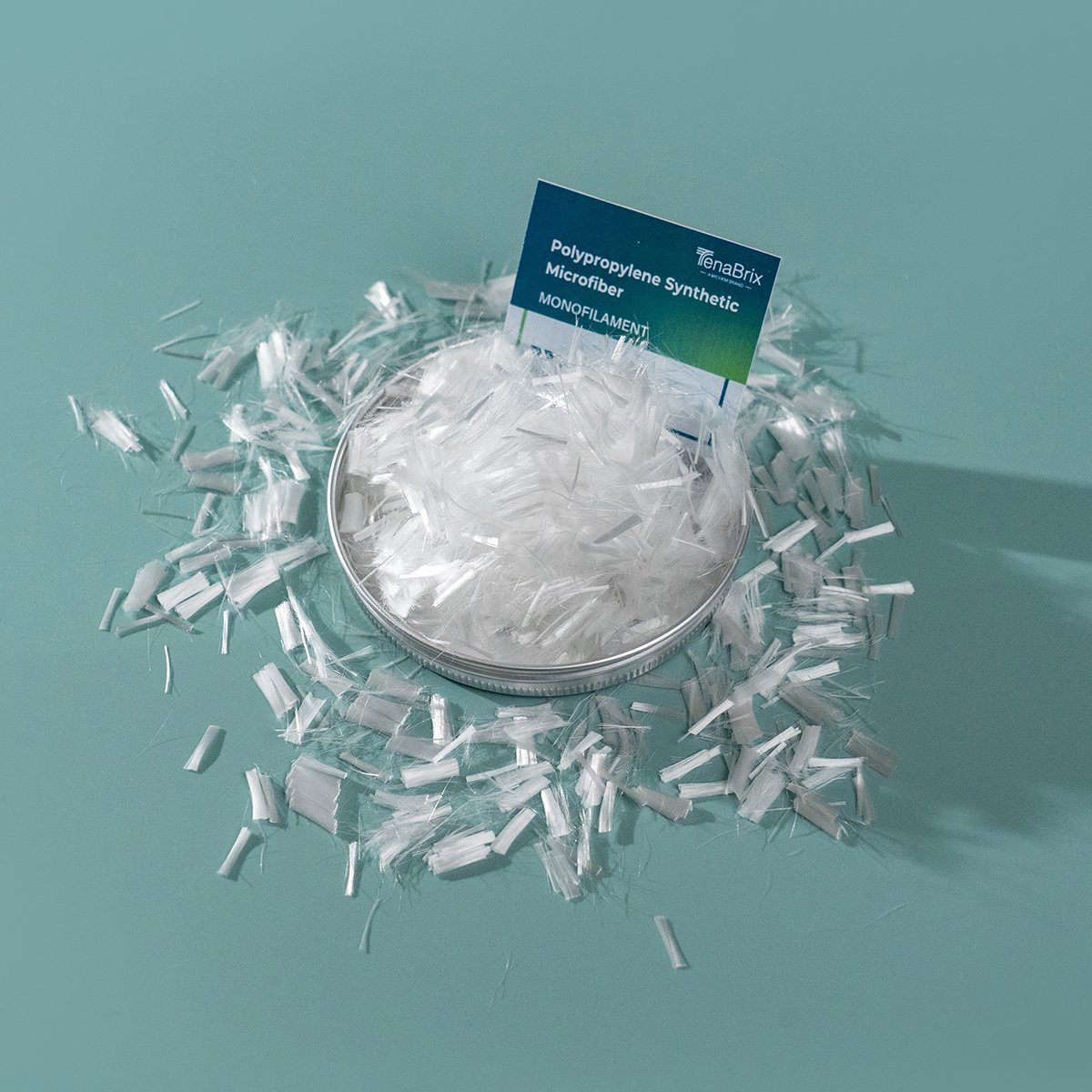

While PP microfiber distributes early strain, excessive dosage increases internal surface area and degrades finishing trowelability. Optimization requires selecting the lowest robust dosage defined by the TDS rather than adding uncontrolled water.
Restrained Drying Shrinkage: Strain vs Tensile Capacity
Concrete can shrink freely without cracking if unbounded. Cracking initiates only when external or internal boundaries restrain dimensional contraction, generating tensile stresses exceeding developing tensile strength:
ASTM C1581/C1581M-24 evaluates age-at-cracking and stress-rate development on restrained concrete rings. Free shrinkage tests alone do not predict cracking under rigid structural restraint.
PCE Water Reduction & Thermal Mass Management
Excess mixing water expands the paste volume and capillary void network, directly amplifying ultimate drying shrinkage. MICHEM PCE Superplasticizers enable high-range water reduction, optimizing paste packing and shrinkage balance upstream.
In massive pours, thermal cracking is driven by heat of hydration gradients between the core and surface. While fibers influence crack distribution, PCE supports lower total binder content to manage hydration thermal peaks.
Hardened Post-Crack Toughness & ASTM C1609
Once hardened concrete exceeds its tensile capacity, microfibers can no longer carry structural loads. Post-crack structural continuity demands engineered macro-synthetic or steel fibers bridging the fractured faces.
ASTM C1609/C1609M-24 third-point beam testing measures first-peak load alongside residual flexural strengths ($$f_{150}^{D}$$, $$f_{600}^{D}$$) at prescribed deflections, verifying energy absorption and crack-width containment.
Macro-Synthetic vs Steel Fibers: Material Dynamics
MICHEM Synthetic Steel / Macro-Synthetic Fibers deliver non-corrosive ductility, impact resistance, and crack containment in slabs-on-grade, precast units, and aggressive marine environments.
Hooked-End Steel Fibers provide high elastic modulus ($$E approx 200text{ GPa}$$) and mechanical end-anchorage for jointless industrial floors and heavy-load foundations. Compare fiber types on equivalent residual performance rather than mass ($$text{kg/m}^3$$).
Curing Protects Hydration
Fibers do not replace moist curing. Proper curing maintains internal relative humidity, prevents rapid surface desiccation, and allows the cementitious matrix to gain tensile resistance.
Joint Layout Engineering
Contraction joints are intentional relief planes. Fibers control crack widths and provide aggregate interlock shear transfer, but do not permit arbitrary elimination of control joints.
Crack Width & Durability
Cracks exceeding critical widths accelerate chloride ingress and carbonation. Engineered fiber bridging keeps crack apertures tightly closed to protect embedded rebar from corrosion.
Practical Concrete Crack Mechanism Map
Systematic product screening mapped to specific concrete cracking stages.
| Crack Mechanism | Primary Control Direction | MICHEM Screening Family | Target Verification |
|---|---|---|---|
| Plastic Shrinkage | Evaporation control, curing, micro-reinforcement | MICHEM PP Monofilament Fiber | ASTM C1579 comparative crack reduction & filament dispersion |
| Plastic Settlement | Mixture stability, consolidation, cover depth | MICHEM PP Monofilament Fiber | Bleed water reduction, subsidence pattern, fresh cohesion |
| Restrained Drying Shrinkage | Water/paste optimization, joint layout, curing | MICHEM PCE (Indirect water reduction) | ASTM C1581 restrained ring cracking age & length change |
| Thermal Hydration Cracking | Binder optimization, cooling, thermal plan | MICHEM PCE (Binder reduction) | Internal temperature history and core-to-surface gradient |
| Structural Hardened Cracking | Post-crack reinforcement & cross-section design | Synthetic Steel / Hooked Steel Fiber | ASTM C1609 flexural residual strength ($$f_{150}^{D}$$, $$f_{600}^{D}$$) |
| Dynamic Fatigue & Impact | Energy absorption and structural toughness | Macro-Synthetic / Steel Fiber | Cyclic loading endurance, impact toughness, crack retention |
Concrete Crack Troubleshooting Guide
Systematic root cause analysis and remediation pathways for cracking defects.
Fissures Appear Before Finishing
High evaporation rate exceeding bleed rate. Erect windbreaks, apply evaporation retarders, and incorporate PP Monofilament Fiber to bridge early plastic tensile strain.
Cracks Directly Follow Top Rebar
Plastic settlement caused by excessive bleeding and inadequate cover. Adjust aggregate grading, improve consolidation vibration, and optimize microfiber network cohesion.
Cracking Several Weeks After Pouring
Restrained drying shrinkage. Audit mixing water demand, joint spacing, curing duration, and subbase friction before assuming fiber dosage deficiency.
Slump Drops After Fiber Addition
Fibers increase internal surface area. Never add uncontrolled water to recover slump; rebalance rheology using a compatible MICHEM PCE superplasticizer.
Frequently Asked Questions
Essential technical clarifications on fiber mechanisms, testing standards, and mix design.
Which MICHEM fiber controls plastic shrinkage cracking?
Polypropylene Monofilament Microfiber is the dedicated screening direction for arresting early plastic shrinkage and settlement micro-fissures.
Can PP microfiber prevent all concrete cracks?
No. PP microfibers act specifically during the initial plastic stage. Restrained drying, thermal mass gradients, and structural loads require macrofibers, joints, and curing.
Which fiber category is required after concrete hardens?
Macro-synthetic and steel fibers are required to provide post-crack bridging, residual load-bearing capacity, and flexural toughness.
Is PCE superplasticizer a crack-control additive?
PCE is a water-reducing dispersant. Lowering mixing water demand directly reduces paste volume and subsequent drying shrinkage strain upstream.
Which standard evaluates plastic shrinkage cracking?
ASTM C1579-21 evaluates the comparative crack reduction of restrained fiber-reinforced concrete panels under accelerated drying conditions.
Do fibers eliminate the need for contraction joints?
No. Contraction joints remain critical design elements. Fibers tightly control crack widths and provide load transfer, but do not replace joint planning.
Control the Mechanism, Not the Word “Crack”
Reliable crack mitigation assigns every challenge to its initiation stage: PP microfiber for plastic shrinkage, PCE for water reduction, and macro-synthetic/steel fibers for structural toughness.
Partner with MICHEM engineering specialists to evaluate your concrete mix, curing protocol, and fiber dosage against international ASTM and EN performance standards.
